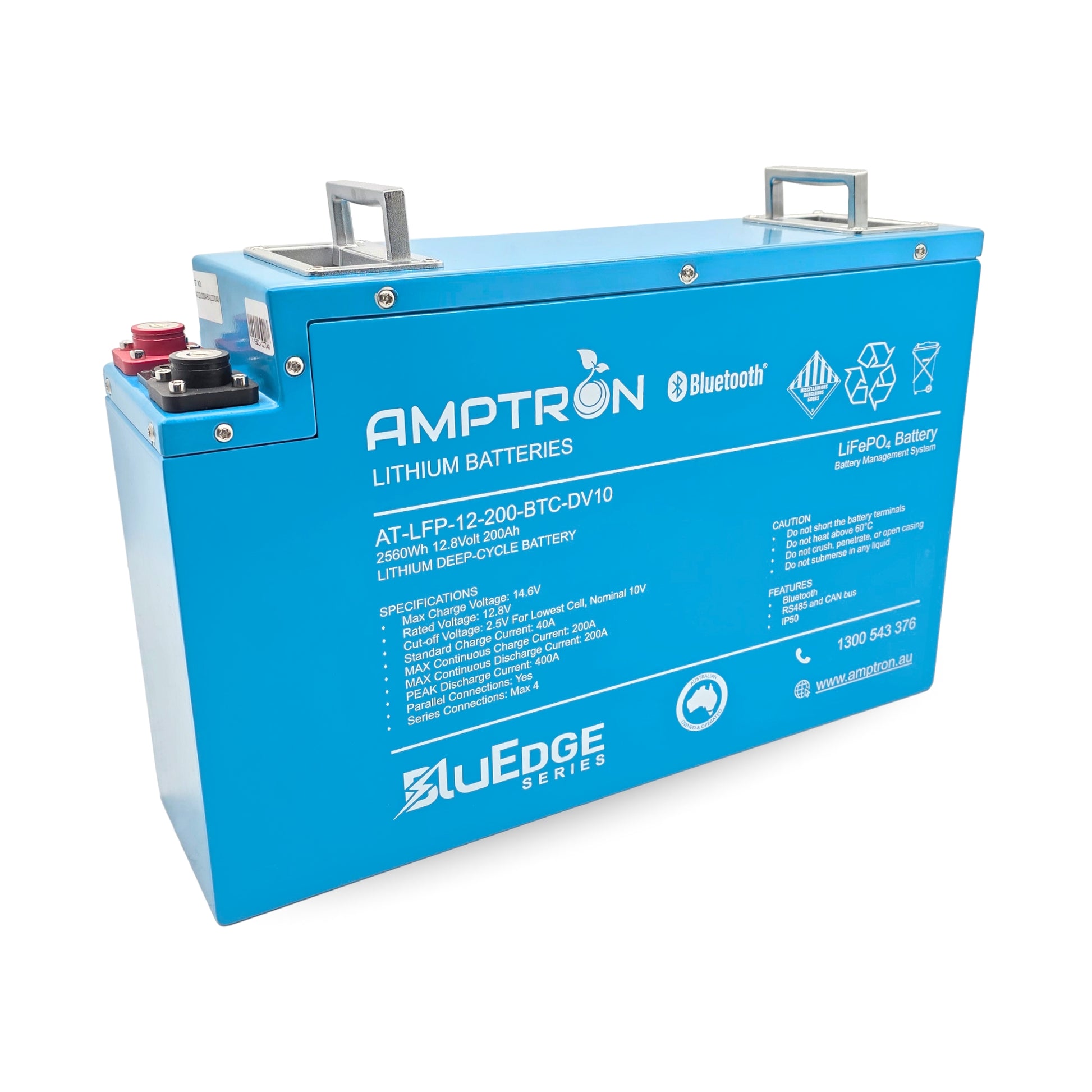

Amptron 12V 200AH/200A LiFePO4 Slimline Battery with Bluetooth

Ultra Safe
The advanced Battery Management Safety System provides comprehensive protection to the battery with high precision configurable protection and monitoring features, that protect the battery and carefully manages the safe long-term performance of each individual cell and the battery pack (or a bank of inter-connected batteries).

THE BMS PROTECTION FEATURES INCLUDE:

Low Voltage Protection Switch – Automatically disconnects the discharge circuit to prevent damage to the cells if the battery drains below a pre-set voltage.
Over Voltage Protection Switch – Automatically disconnects the charging circuit to prevent damage to the cells if the battery is being charged above a pre-set voltage.
Short Circuit and Over Current Protection Switch – Automatically disconnects the discharge circuit if the discharge current exceeds pre-set limits.
Reverse Polarity Protection Switch – Automatically disconnects the charge and discharge circuits if a reverse polarity condition is detected.
Thermal protection – Built-in thermal sensors will automatically disconnect the charge and discharge circuits when excessive temperatures are detected.
The system will also report any alarm and protection statuses through its communication interfaces to allow the user to trouble shoot and identify any issues.

The batteries are independently tested to comply with the IEC62619 safety standard, is UN38.3 certified, and also comply with the requirements of the AS/NZS 3001.2:2022 Connectable electrical installations and supply arrangements standard, giving you peace of mind for the safe, reliable, and compliant performance of the batteries.
Long Life and Warranty
The cell cycle life has been enhanced by newer prismatic cell designs and improved cell management by the new BMS to maximise battery life. Depending on the model, these batteries offer a very long cycle life of between 4000 to 6000 cycles at 100% Depth of Discharge.

The BluEdge series is backed by an Australian based 5-year warranty.

Robust tough design
Enhanced shock and vibration protection is provided via enhanced framing around the cell packs to prevent internal movement of the cells and/or electronics that may result in failures or metal fatigue over time. This makes these models very suitable for applications in rough offroad conditions, marine environments, and industrial applications where a robust construction is required. Amptron takes steps to ensure that all internal wiring is protected, and high-quality internal connectors and bus bars are used so intermittent failure modes are not introduced in harsh environments.

Uncompromised Waterproofing
Amptron has designed a unique triple-layered moisture protection on all models with ABS cases. The triple-layered design provides three barriers against potential moisture ingress:

A method to inject the sealing adhesives in all seams to minimise the probability of small gaps/air pockets that may allow some moisture or moist air entering the battery case.
The whole cell pack and electronics are wrapped in a sealed membrane. Even if any moisture finds a way to penetrate the seams of the outer casing, or if any condensation should form internally in the battery case, then the membrane would protect moisture getting in contact with the cells or electronics.
Additionally, the electronics is conformally coated providing resistance to corrosion of individual components on the PCB.

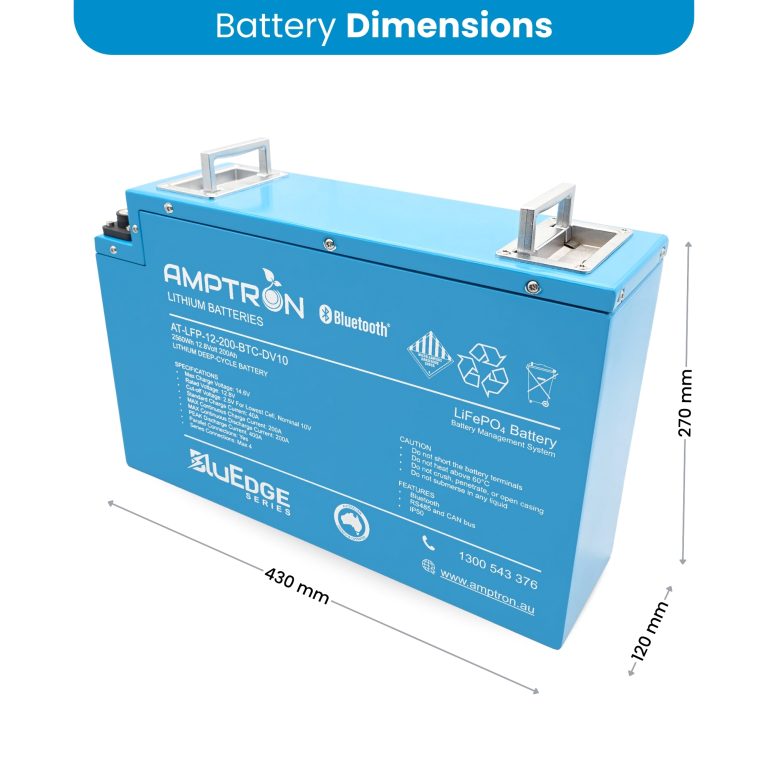

Size- L-430mm x W-120mm x H-270mm
Weight- 23kg

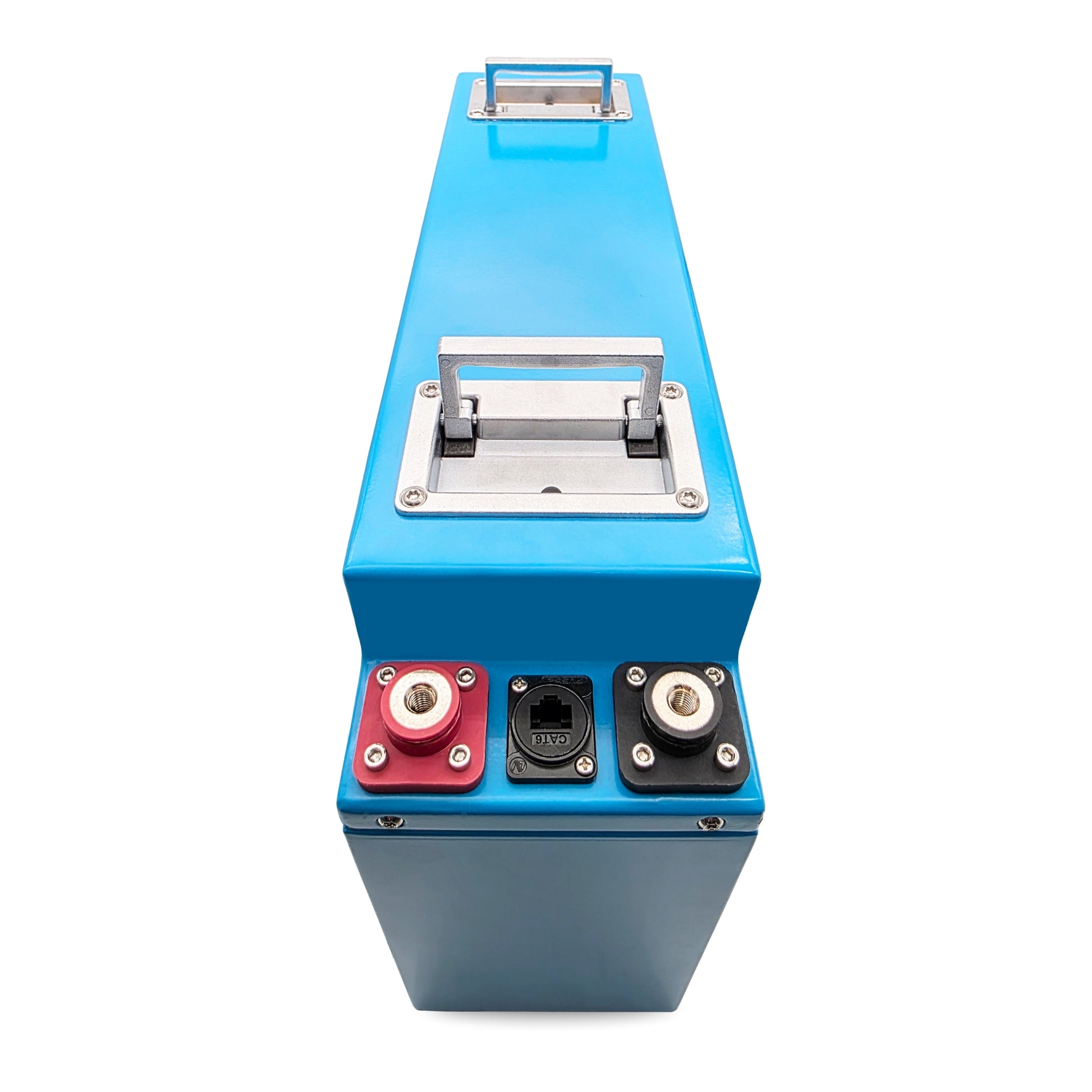

Connection Terminals- M8
Connection Terminal Torque Limit- 6Nm
Outer Casing Material- Powder-coated Aluminum
Casing material for single cell- Aluminium
IP Rating- IP50
Chemistry- Lithium iron Phosphate (LiFePO4)
Cell type- Prismatic
Rated Capacity- 200Ah/2560WH (at 0.2C)
Cell packs in series- Supported (4)
Battery packs in parallel- Supported
Battery cycle life- 6000 times (0.2C standard charge & discharge)
Rated voltage / nominal voltage- 12.8V
Operating voltage range- 10V-14.6V
Shipping voltage- 11-14V
Recommended charge voltage- 14.4V
Cut-off voltage- 10V / When lowest cell reaches 2.5V
Depth of discharge (DoD)- 100% Recommended DoD 80%
Standard- 40A
(Recommended charge current)
Charging time at recommended charge current- 4-5 Hours
Maximum charge current- 200A
Max continuous discharge current- 200A
Peak discharge current (3 seconds)- 400A
Internal resistance- ≤ 12mΩ
Operating power consumption- ≤ 120mA
Operating temperature- Charge: -0°C～55°C (Ambient)
Discharge: -20°C～60°C (Ambient)
Storage temperature range- Within 2 months -20°C～40°C
