Amptron 12V High Shade Tolerant Mono Solar Panel
Amptron 12V High Shade Tolerant Mono Solar Panel
Out of stock

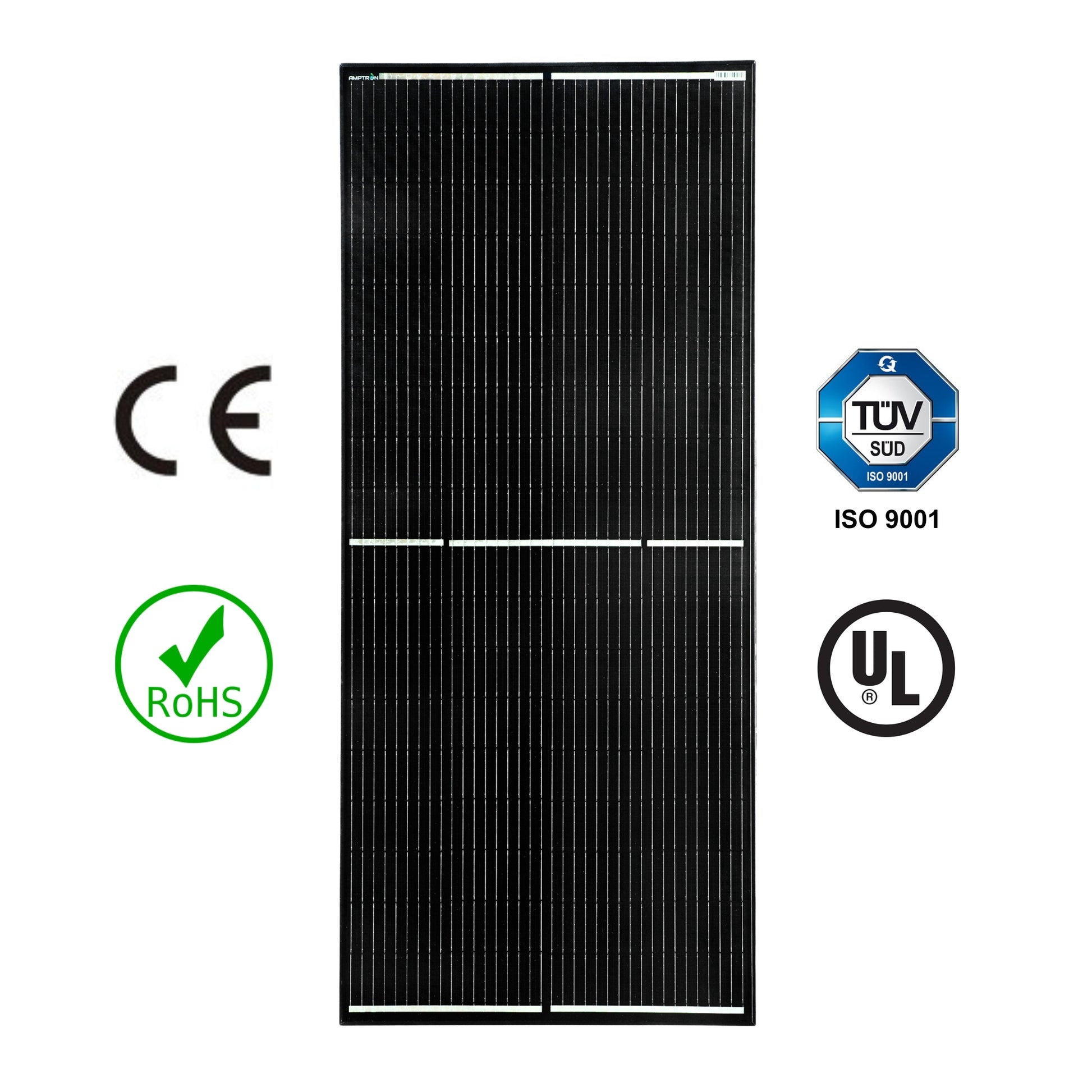

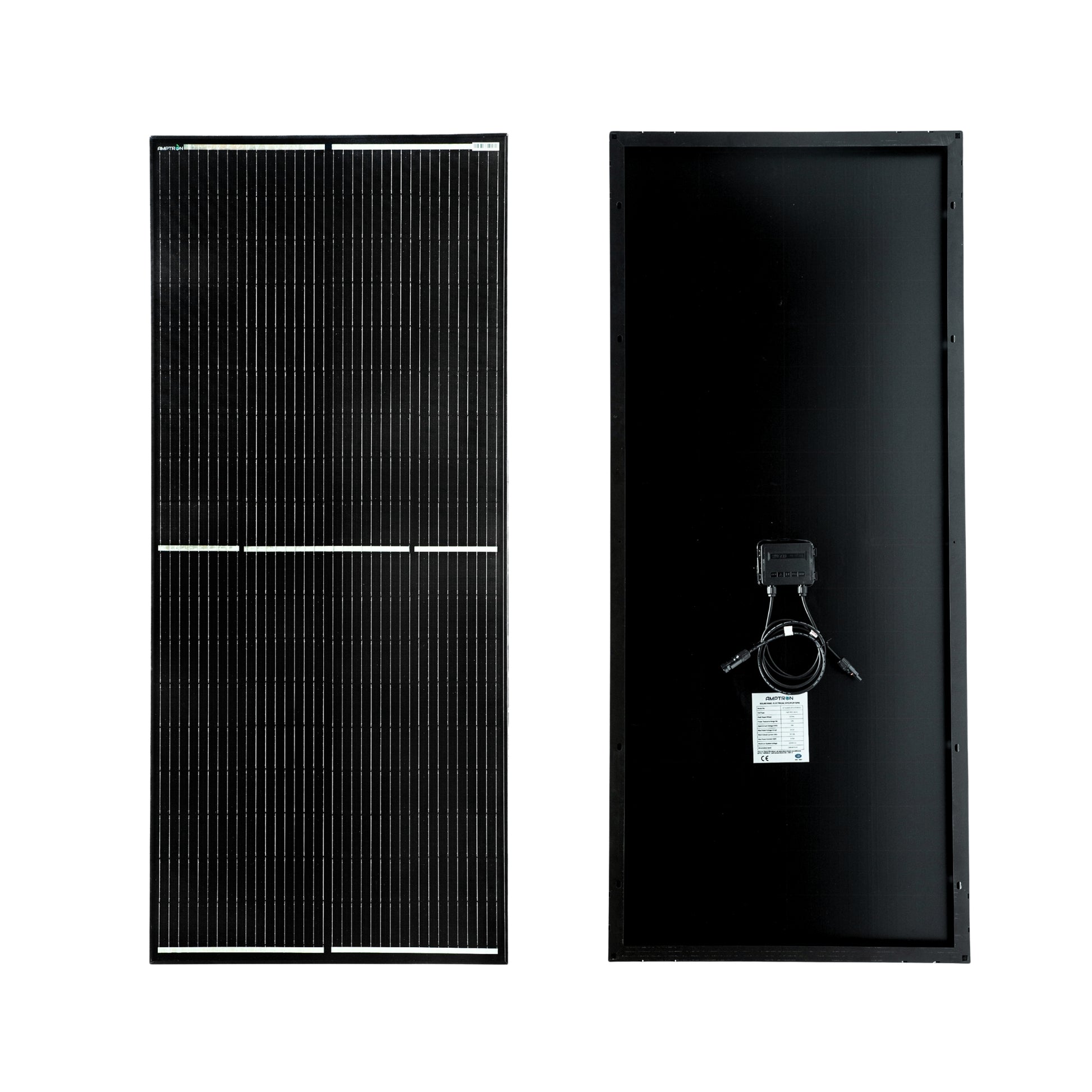

Maximise your solar output with our advanced 200W monocrystalline solar panel, engineered with half-cut cell technology and a split-panel layout, it delivers superior performance even in partial shade—one side can be fully shaded while the other continues generating power at full capacity. This innovative design enhances energy reliability in variable conditions, making it perfect for RV solar systems, caravan roofs, marine setups, cabins, and home backup power.
Couldn't load pickup availability
Product features
Product features
Specifications
Specifications
Maximum power rating
Pmax 200 Watt

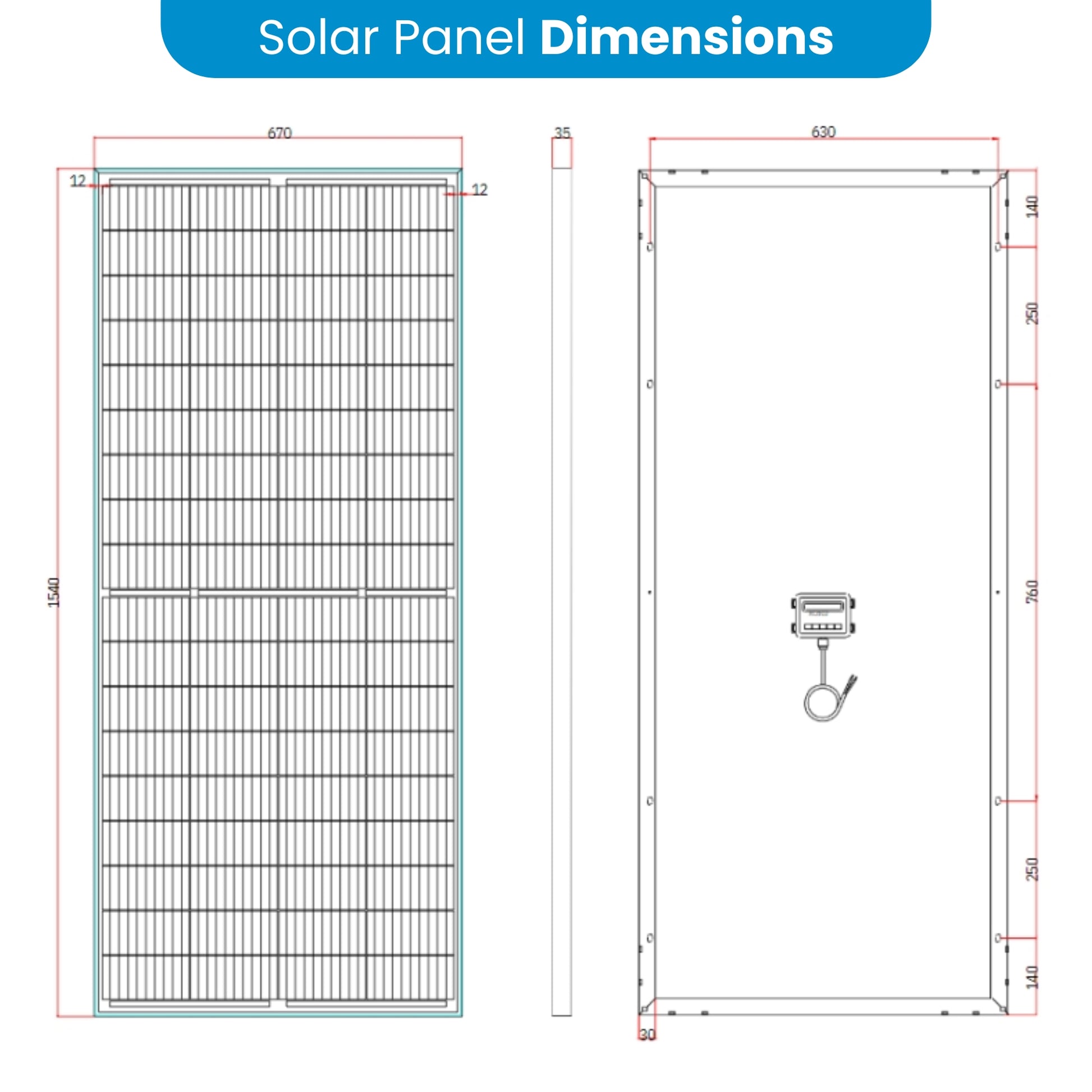

Solar Panel dimensions
L-1540mm x W-670mm x H-35mm (without Aerodynamic brackets)
L-1610mm x W-670mm x H-35mm (with Aerodynamic brackets)
Tolerance on power output
+/- 3.0 %
Current at max power
Imax 9.76Amps
Voltage at max power
Vmax 20.5 Volts
Short circuit current
Isc 10.24Amps
Open circuit voltage
Voc 24.0 Volts
No of cells
72(4*9*2)
Cell Efficiency
22.70%
Maximum system voltage
1000V DC(IEC)
Junction Box
with 4sqmm 2 core cable + MC4 compatible
Weight
9.3kg
