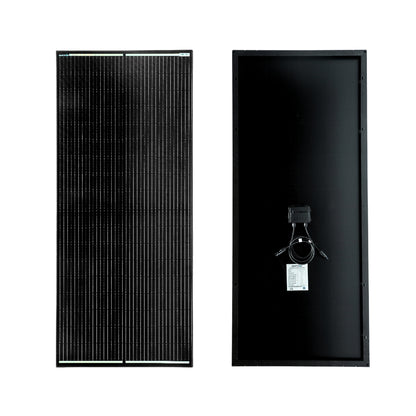

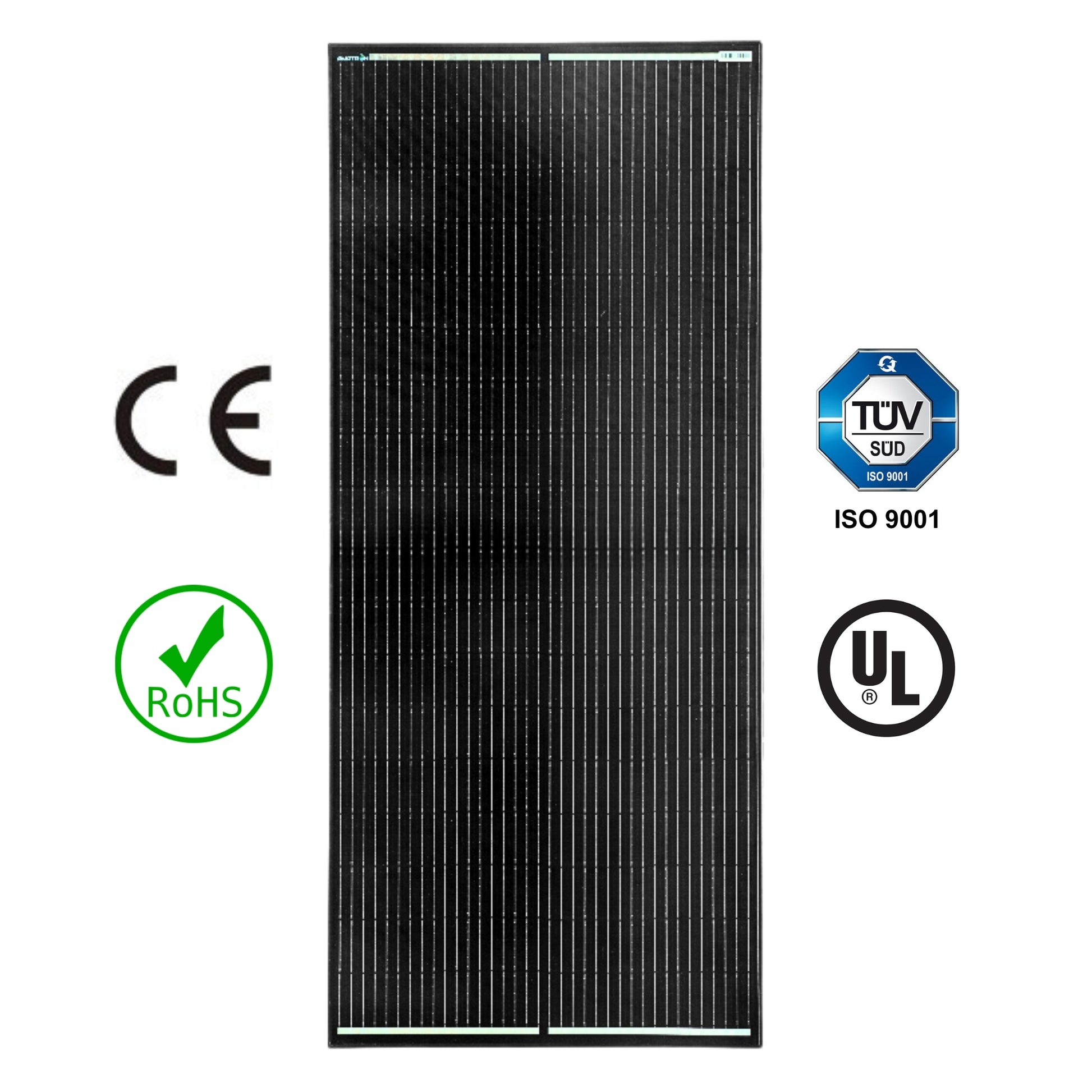

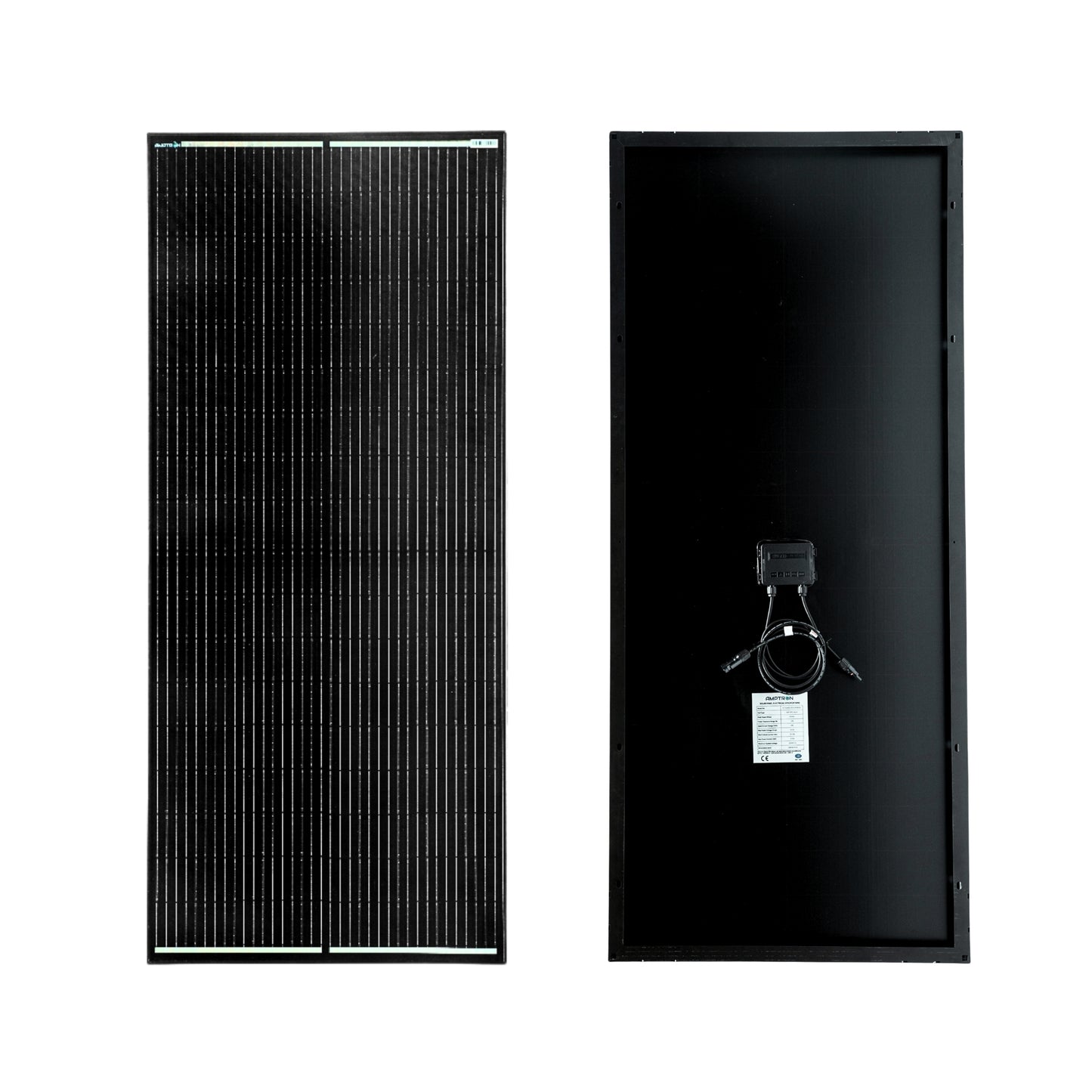

Amptron High Voltage Mono Solar Panel
Amptron High Voltage Mono Solar Panel
Out of stock
High-Voltage Panel (63.8V) is Ideal for charging higher voltage battery systems (24V, 36V or 48V). This 200W is a highly efficient Photovoltaic Power Source For RVs, Campers, Cabins, Boats and Home Backup Power Systems. It has excellent shading tolerance, thanks to the half cut cell topology.
Couldn't load pickup availability
Product features
Product features
Specifications
Specifications
Maximum power rating
Pmax 200 Watt

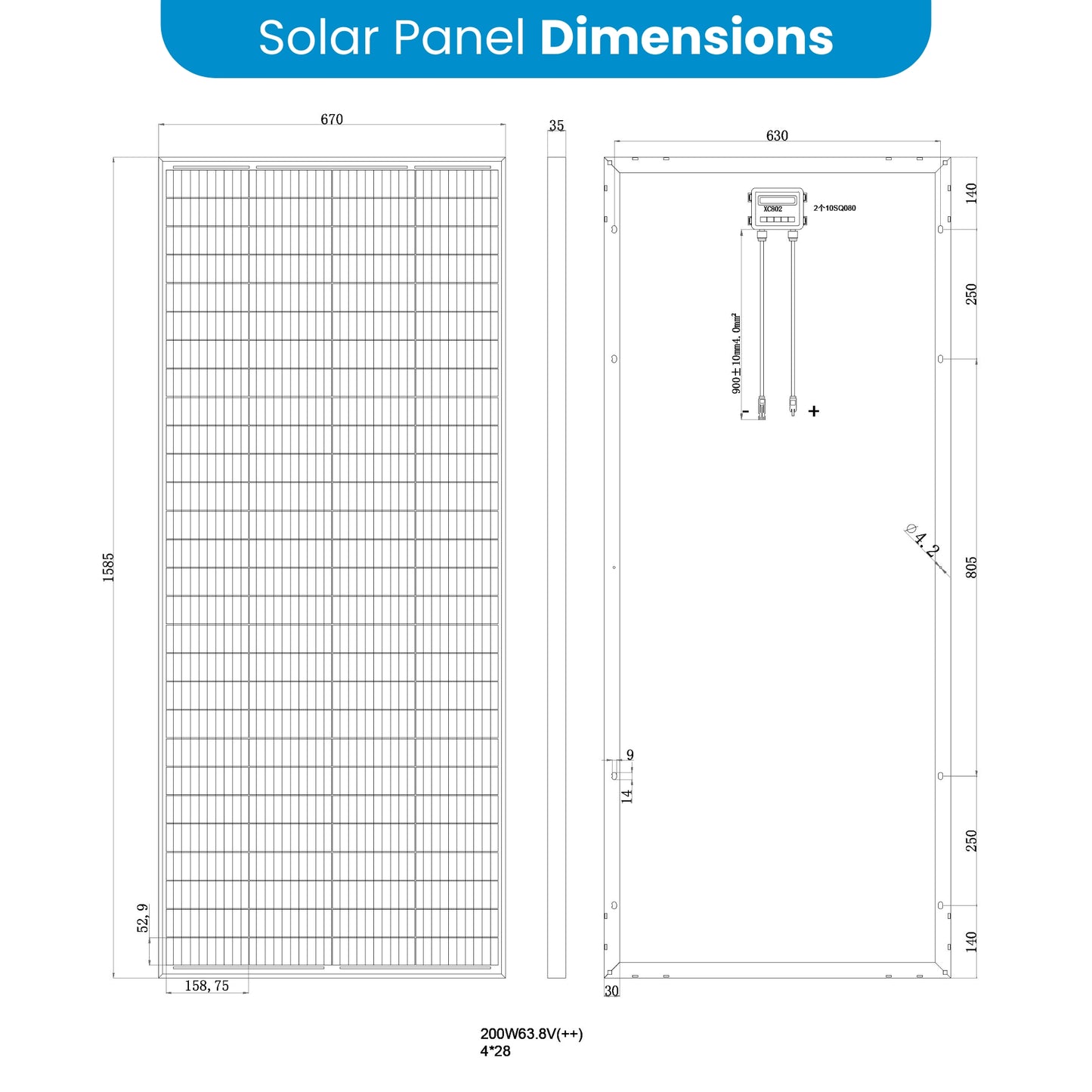

Solar Panel dimensions
L-1585mm x W-670mm x H-35mm (without Aerodynamic brackets)
L-1655mm x W-670mm x H-35mm (with Aerodynamic brackets)
Tolerance on power output
+/- 3.0 %
Current at max power
Imax 3.14Amps
Voltage at max power
Vmax 63.8 Volts
Short circuit current
Isc 3.29 Amps
Open circuit voltage
Voc 74.6 Volts
No of cells
112(4*28)
Cell Efficiency
22.70%
Maximum system voltage
1000V DC(IEC)
Junction Box
with 900mm x 4sqmm 2 core cable + MC4 compatible
Weight
9.3kg
