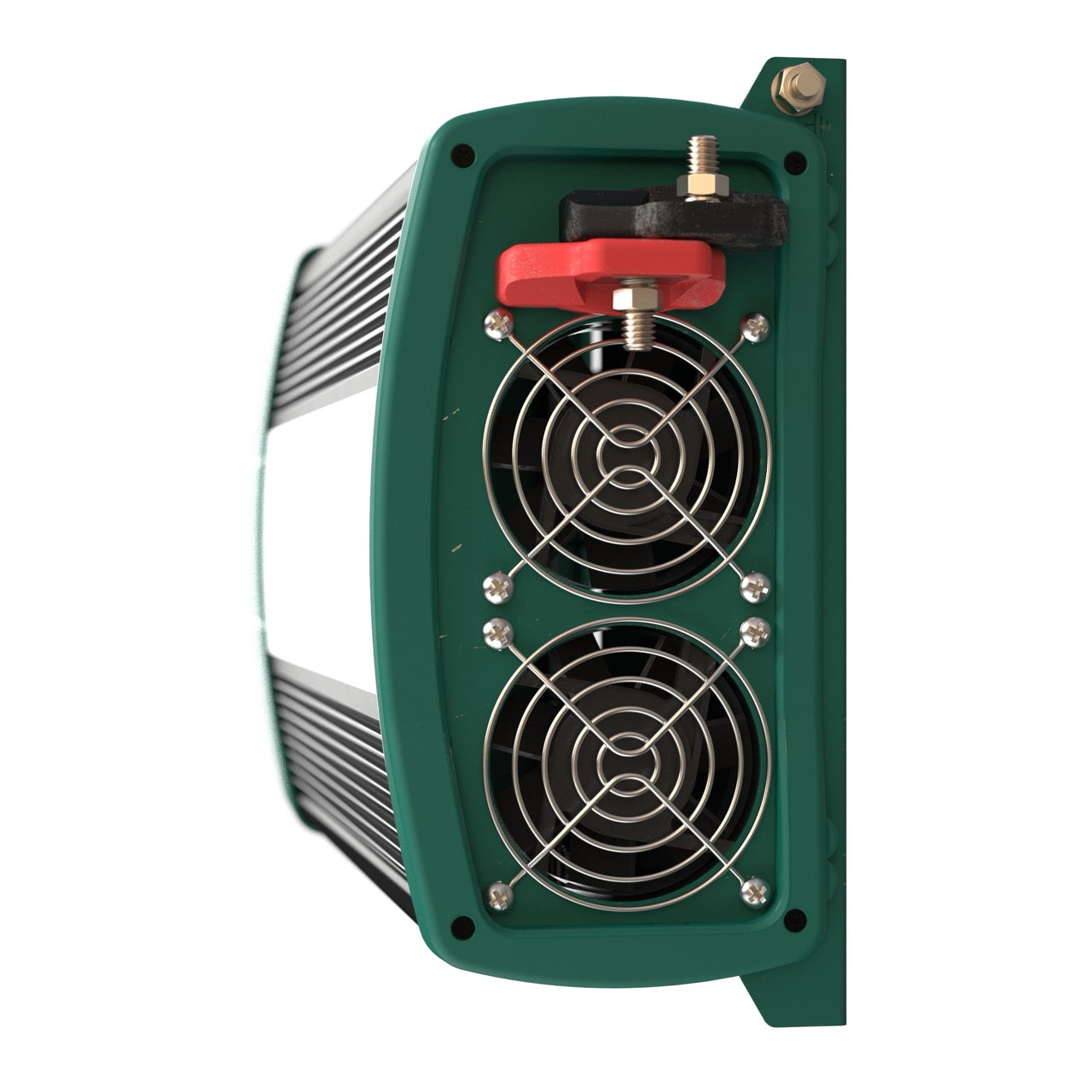

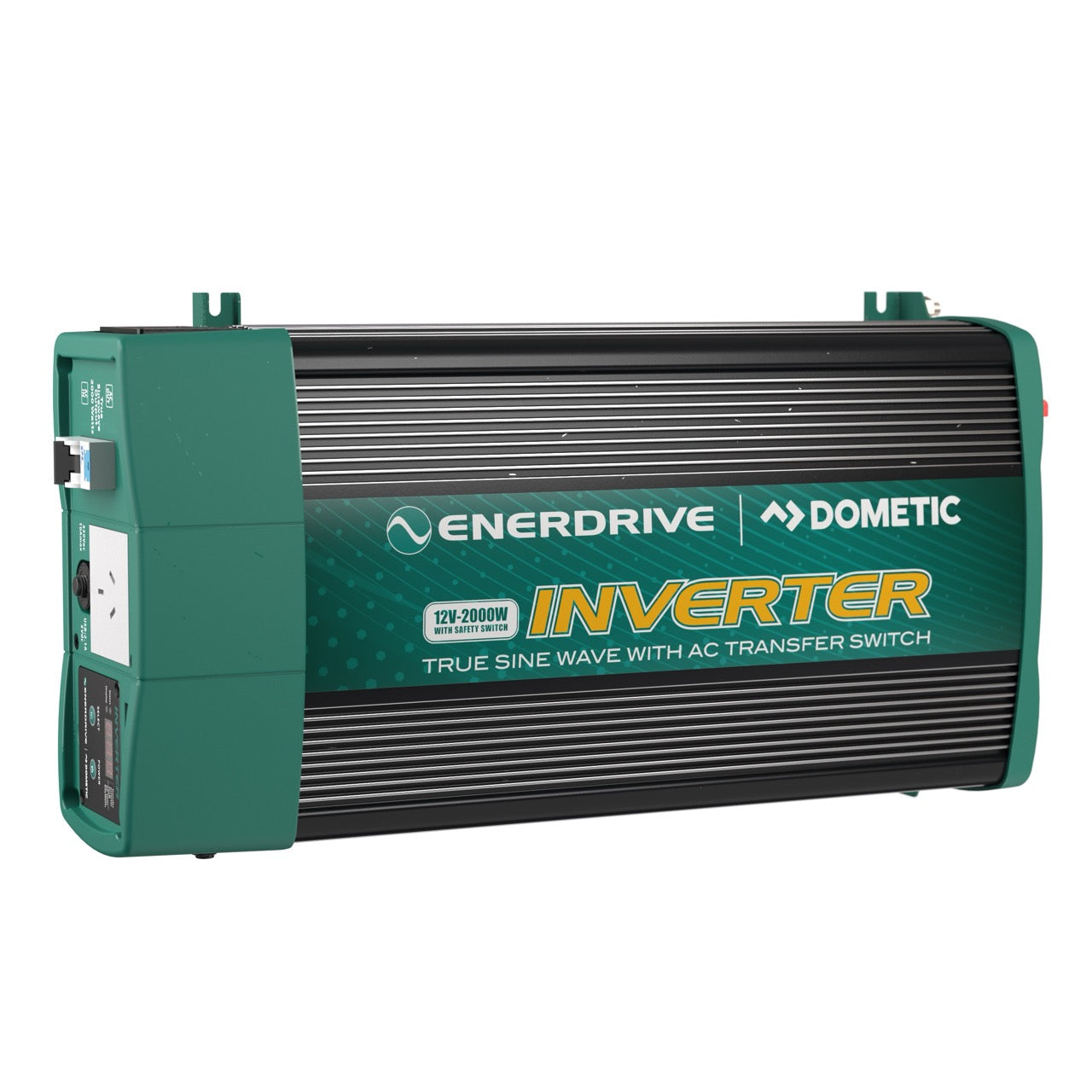

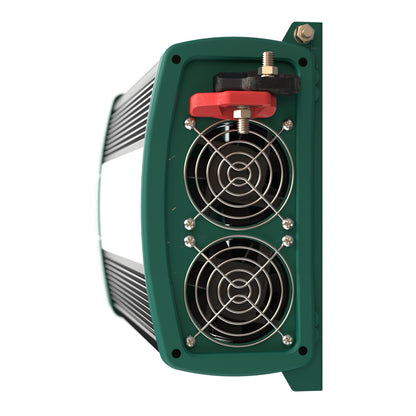

Enerdrive 12V 2000W True Sine Wave Inverter RCD
Enerdrive 12V 2000W True Sine Wave Inverter RCD
Out of stock
The 2000W 12V Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive | Dometic. By using the latest power conversion technology, our inverters deliver clean and energy efficient true sine wave AC power from your DC supply.
Couldn't load pickup availability
Product features
Product features
Seamless 16A AC Internal Transfer Switch
AC RCD/Safety Switch with test button

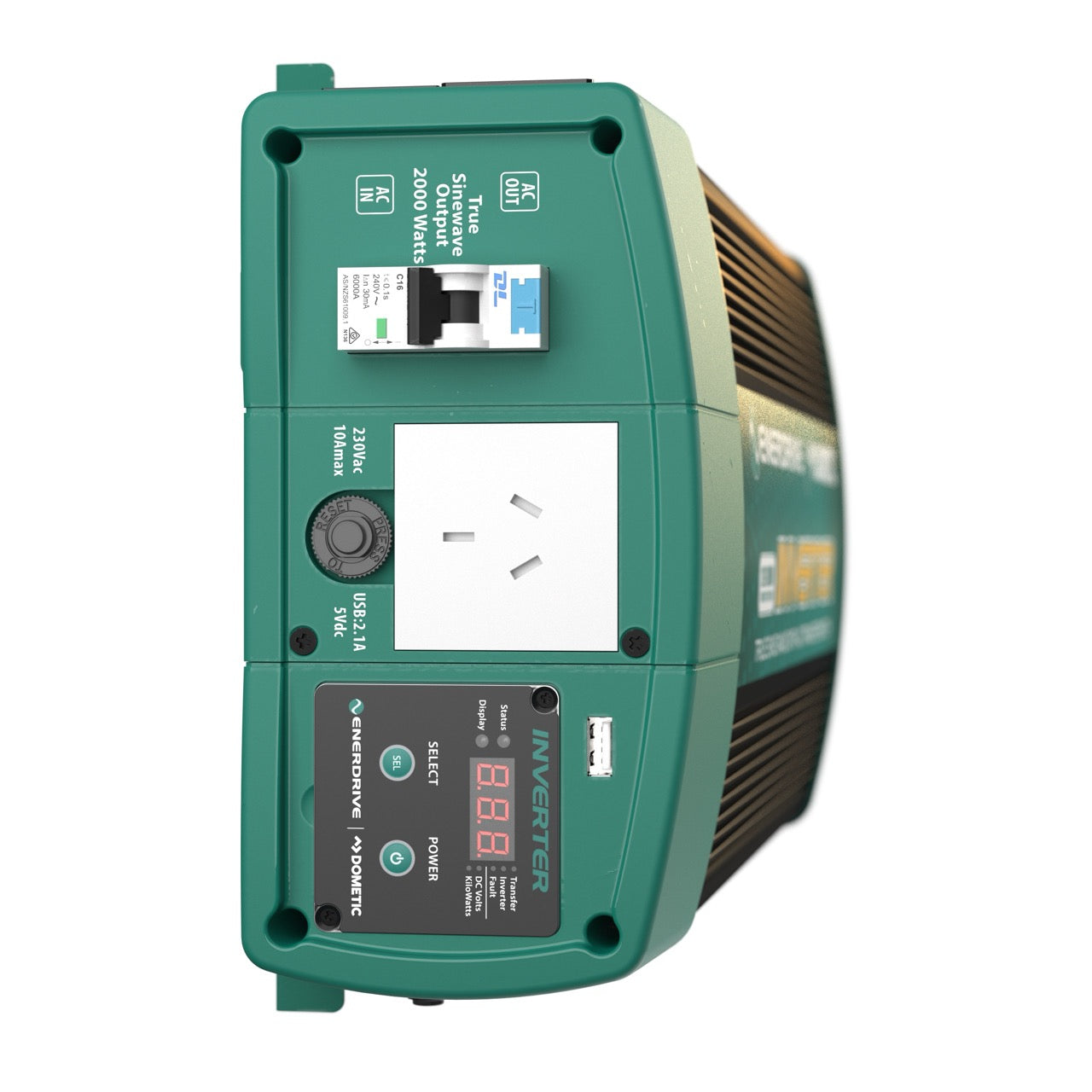

Removable LED Remote Control Display Panel
Regulated Pure Sine Wave Output
Silent Operation
Compact Size for Easy Installation
USB Port for charging USB devices
Specifications
Specifications
AC Output Power 2000W
AC Output Current 8.7A
AC Output Voltage 230 Vac / 50 Hz
AC Output Waveform Sinewave (<3% THD)
Nominal DC Input Voltage 12.5 VDC
No Load battery draw < 1.5 ADC
DC Input Voltage operating range 10.5 – 15.5 VDC
Under Voltage Alarm 11.0 / 12.1 VDC
Under Voltage Alarm Recovery 11.3 / 12.3 VDC
Under Voltage Shutdown 10.5 / 11.8 VDC
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC
Over Voltage Shutdown 15.5 VDC
USB Port 5V, 2.1A
AC Transfer Switch
Transfer Time < 30 ms
Transfer Relay Rating 16A (resistive load)
AC Input socket IEC-C20 16A max
AC Output socket IEC-C19 16A max
AC Output Front GPO 10A max
Safety and Environmental
Conformance All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16
EMI / EMC CE EMC: EN/IEC 62040-2 category C1
Agency Markings RCM , CE
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5-90% non-condensing
Operating Altitude Up to 3000 meters above sea level
Weights and Dimensions
Weight 5.9 kg
Dimensions (W x L x H) 444x230x115 mm
Warranty 5 Years
