Enerdrive DC2DC 12V 40+A Battery Charger MPPT
Enerdrive DC2DC 12V 40+A Battery Charger MPPT
Out of stock
The Enerdrive | Dometic DC2DC 40A+ (up to 50A*) Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays.
Couldn't load pickup availability
Product features
Product features
Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output

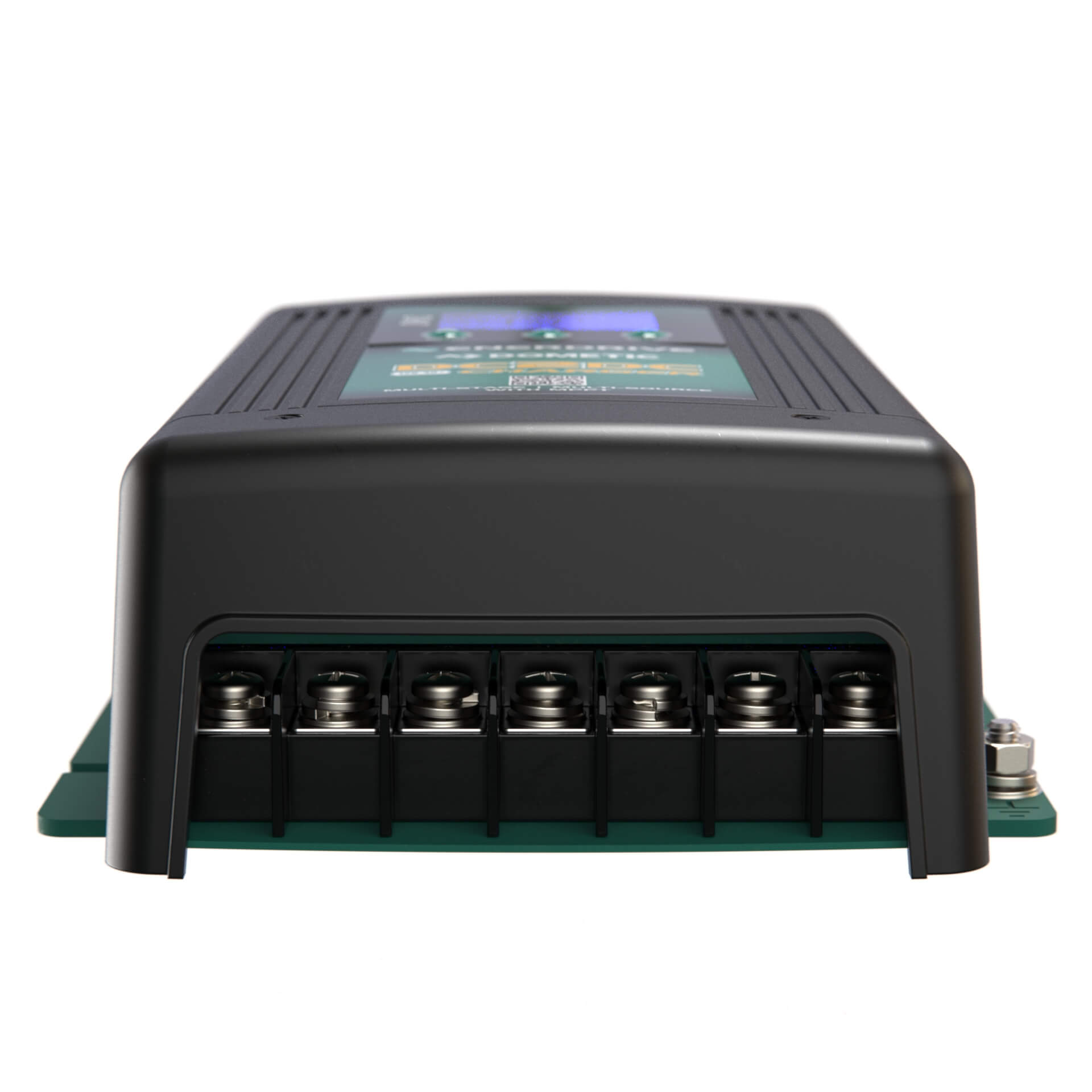

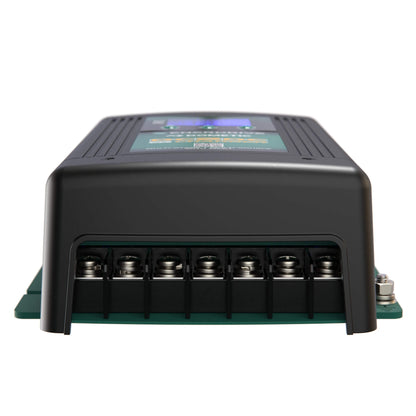

DC M6 screw terminals that will allow for large battery cable connection between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains battery charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
40A+ output up to 40+°C with thermo controlled fan cooling

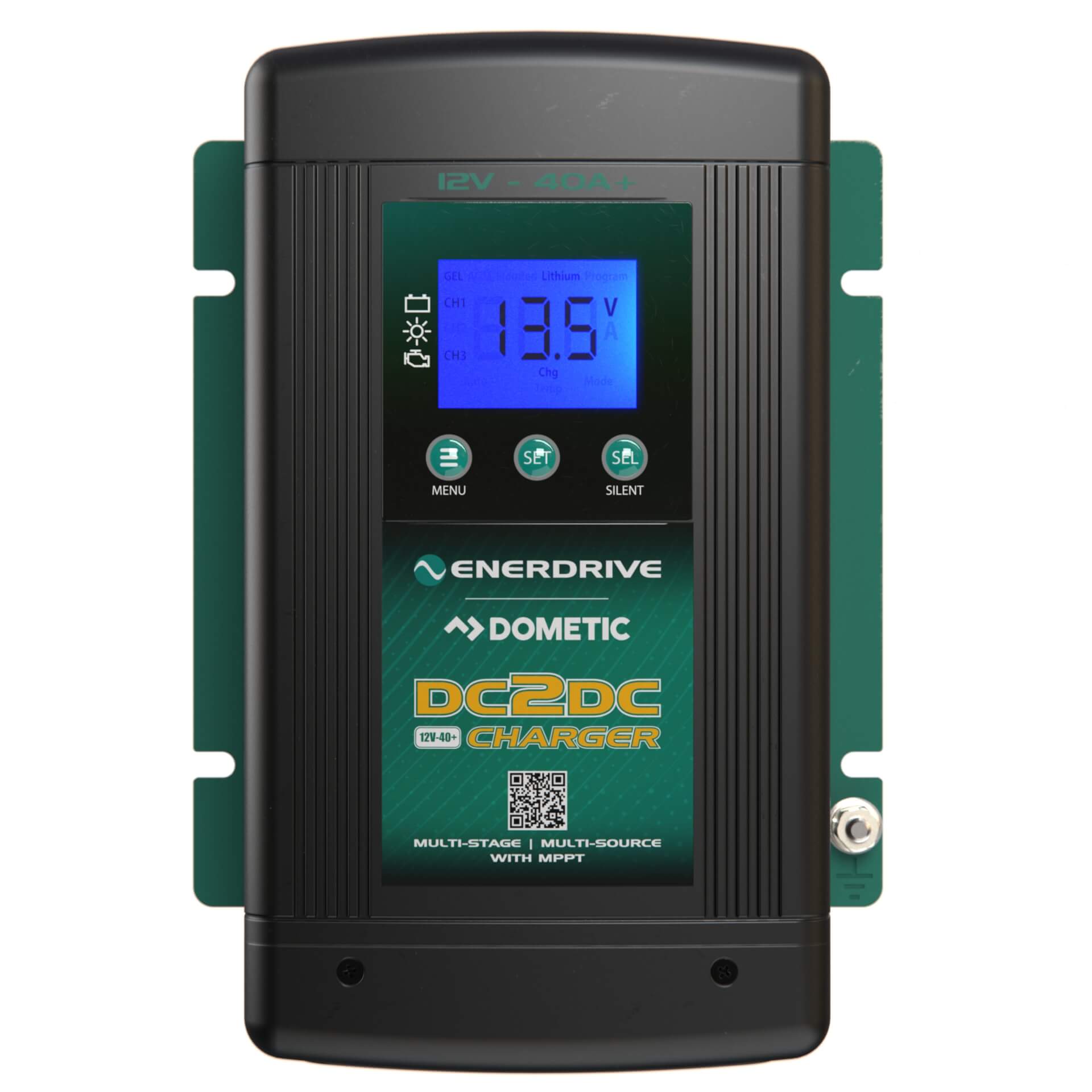

Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
Temperature sensor included with charger for more accurate battery charging
Specifications
Specifications
Output Voltage 12V Nominal (8.0V min)
Output Current (Maximum) 40A ~ 50A
Output Power 775W
Charger DC Output (CH1):
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Charger Voltage Range 13.8V – 15.5V
Float Voltage Range 13.0V – 13.8V
Charger Current (User Selectable) 5/10/15/20/25/30/35/40/45/50A (default 40A)
Equalize Voltage (Flooded Battery) 15.5V
Equalize Charging Current 10% of Bulk Current Setting
Charging Control 2 stage / 3 stage selectable (Default 3 stage)
DC Output Bank Single
Current draw from CH1 when not in use < 50mA
Battery Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard)
Efficiency 95%
INPUT Rating (CH2 – MPPT Solar)
Input Voltage 14.5 – 45VOC
Maximum Input ≤ 23V input, 500W (600W allowable) ≥37.5V-45V input, 750W (800W allowable)
INPUT Rating (CH3 – Start/Alternator)
Input Voltage 10.5 – 16VDC / 21 – 32VDC
Dimensions
Height x Width x Depth 242mm x 172mm x 74mm
Unit Weight 1.85 Kg
Shipping Weight 2.17 kg
Warranty 5 Years
