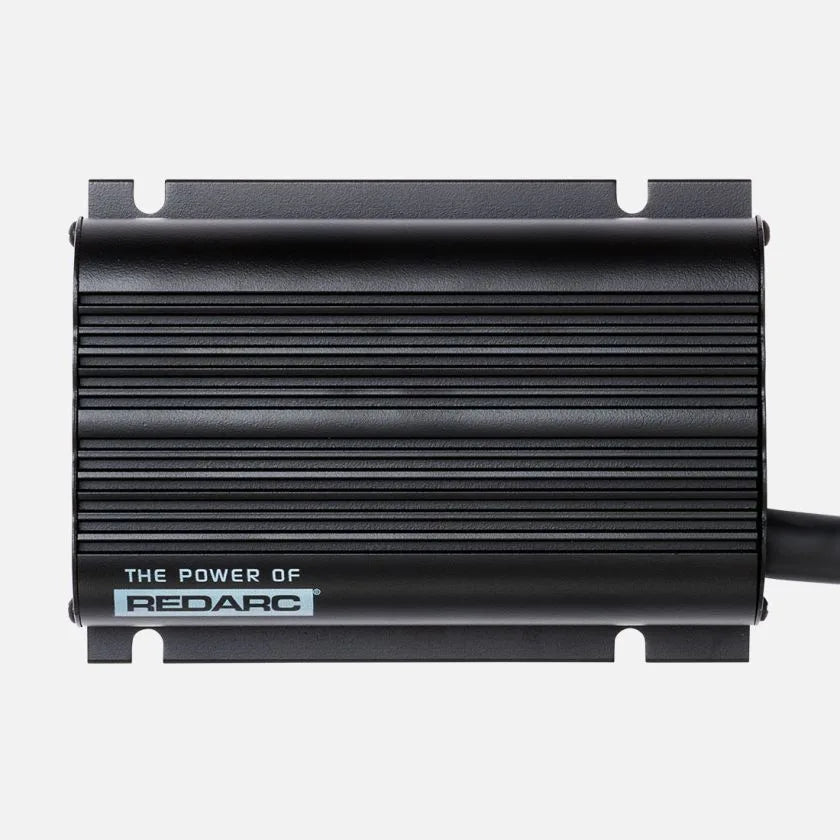

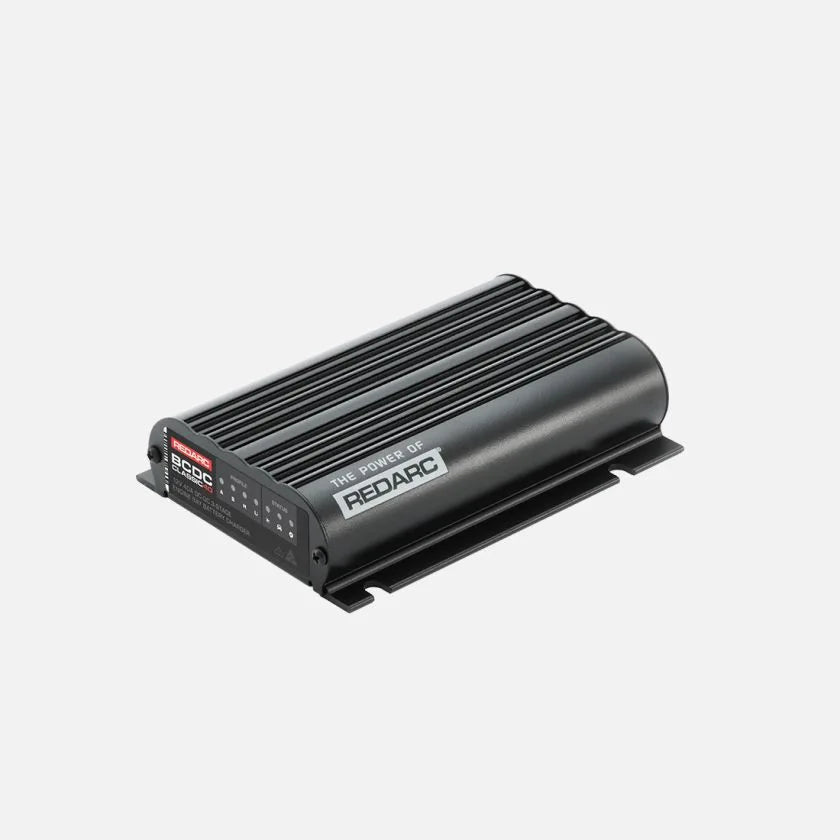

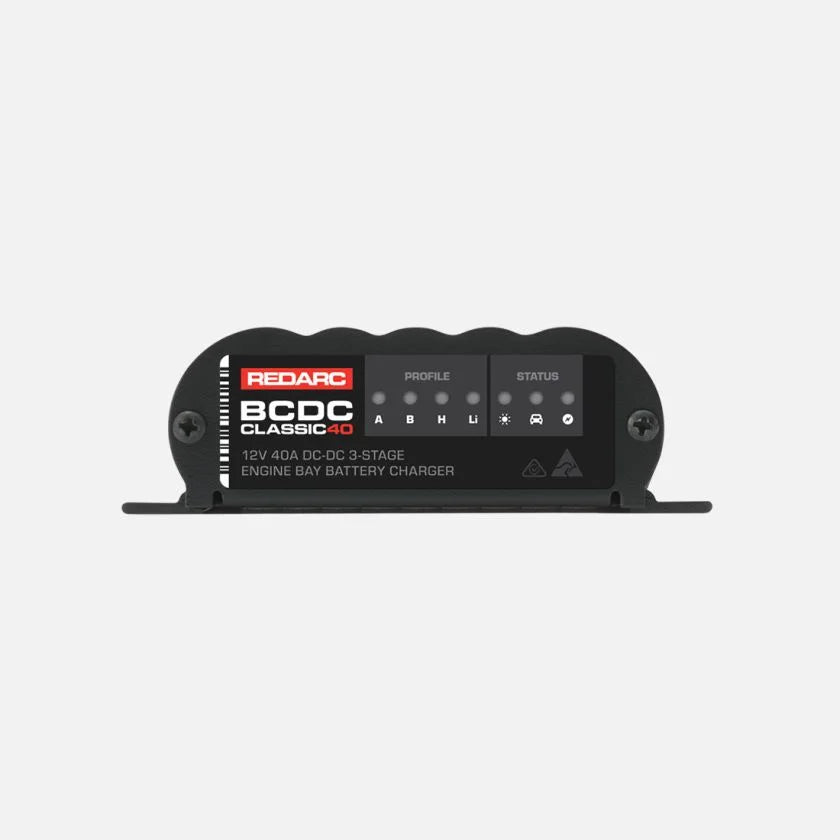

REDARC BCDC Classic 40A 12V DC Battery Charger

Separate DC and solar charging inputs
Maximises the performance and life of your auxiliary battery
Simultaneous DC and solar charging with Green Power Priority™
Suits 12V/24V standard and variable voltage/smart alternators
Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
Suitable for use on vehicles with conventional alternator charging systems

Warranty 2 Years
Brand REDARC
Battery Chemistry Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
Continuous Rating 40A
Power Type - AC DC DC TO DC
Nominal Output Power 600W
Input Fuse Rating 60A (Not supplied) REDARC FK60 recommended
Solar Switch On Voltage 9V
Suitable For 12V Systems Yes
Suitable For 24V Systems Yes
Solar Input Voltage 9 - 32V
MPPT Solar Regulator Yes
Cabin/ Canopy Install Yes
No Load Current <100mA
Trailer Install Yes
Engine Bay Install Yes
Max. Charging Voltage 15.3V
Output Fuse Rating 60A (Not supplied) REDARC FK60 recommended
Operating Temperature -20°C to 80°C
Output Voltage 12V DC
Max. Rated Output Current 40A
Input Voltage 9 - 32V
Standby Current <8mA
Connector Type Bare wire
Weight 1 kg
width 120 mm
height 37 mm
depth | length 165 mm
