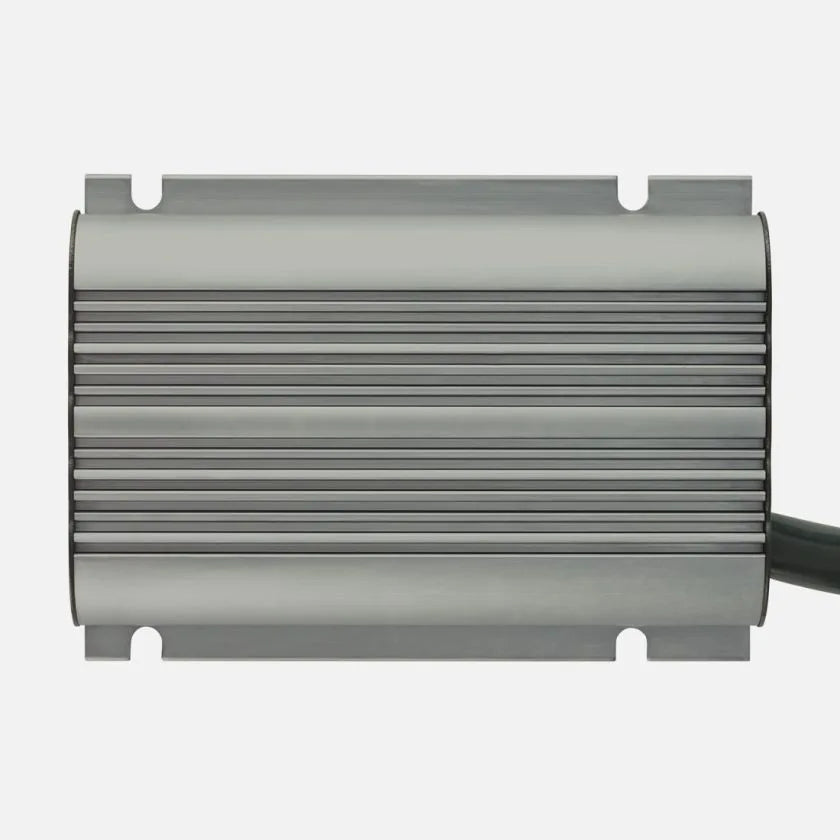

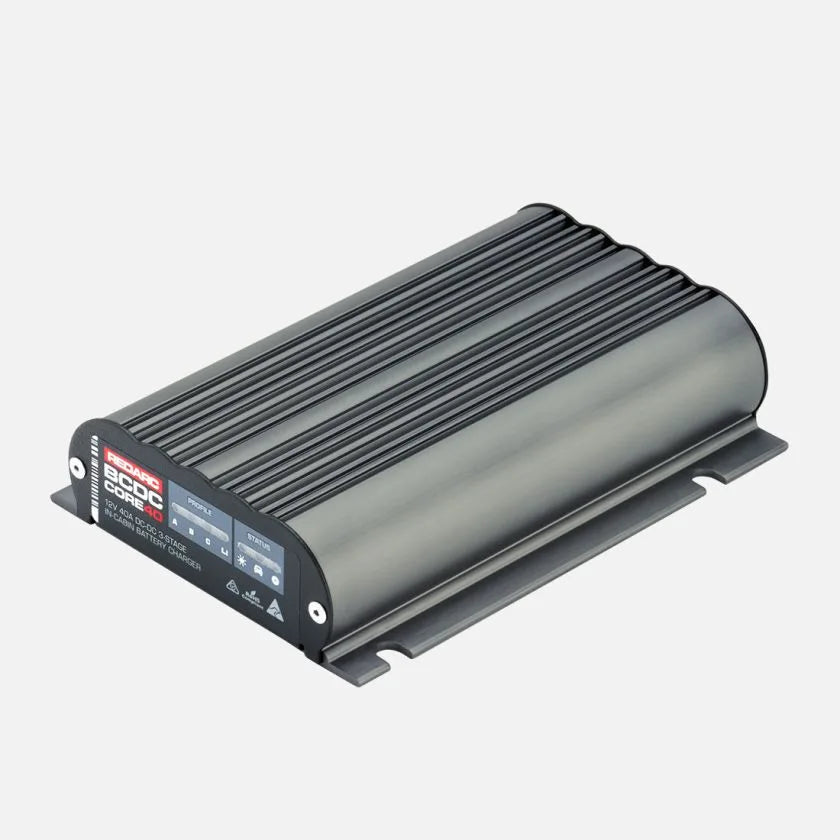

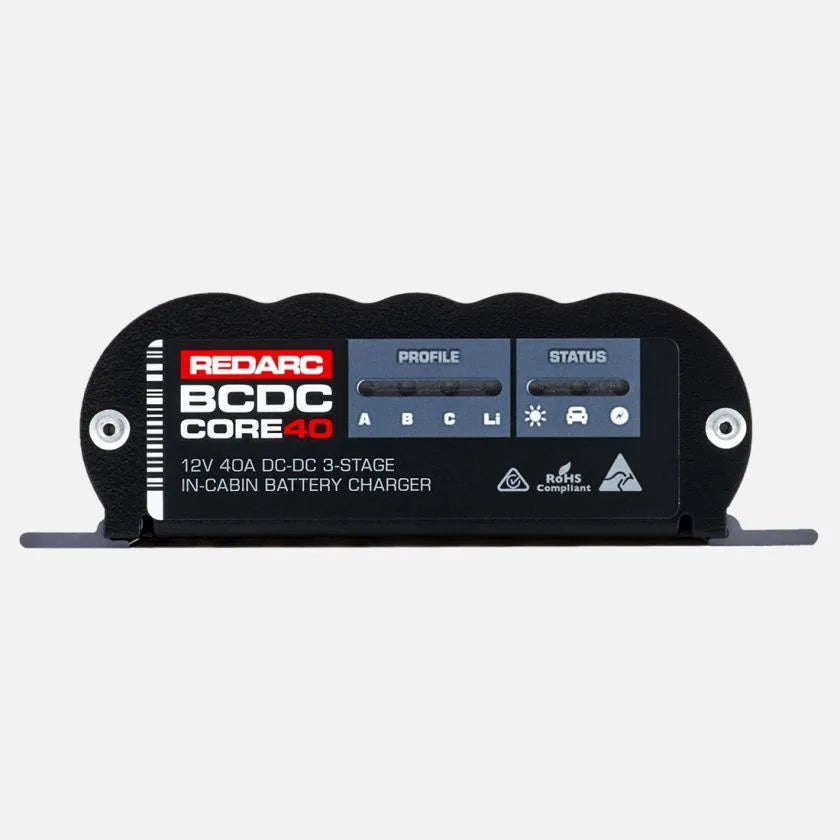

REDARC BCDC CORE In Cabin 40A DC Battery Charger

Suitable for in-cabin and canopy installations only
Compact form factor
Simultaneous DC and solar charging with Green Power Priority™
Maximises the performance and life of your auxiliary battery
Suits 12V/24V standard and variable voltage/smart alternators
Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
Suitable for use on vehicles with conventional alternator charging systems

Brand REDARC
Battery Chemistry Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
Continuous Rating 40A
Power Type - AC DC DC TO DC
No Load Current <100mA
Solar Input Voltage 9 - 32V
Solar Switch On Voltage 9V
Standby Current <8mA
Operating Temperature -15°C to 80°C
Weight 900g
height 37 mm
width 120 mm
depth | length 165 mm
Warranty 2 Years
Connector Type Bare wire
Input Voltage 9 - 32V
Output Voltage 12V DC
Max. Charging Voltage 15.3V
Max. Rated Output Current 40A
Nominal Output Power 600W
Input Fuse Rating 60A (Not supplied) REDARC FK60 recommended
Output Fuse Rating 60A (Not supplied) REDARC FK60 recommended
