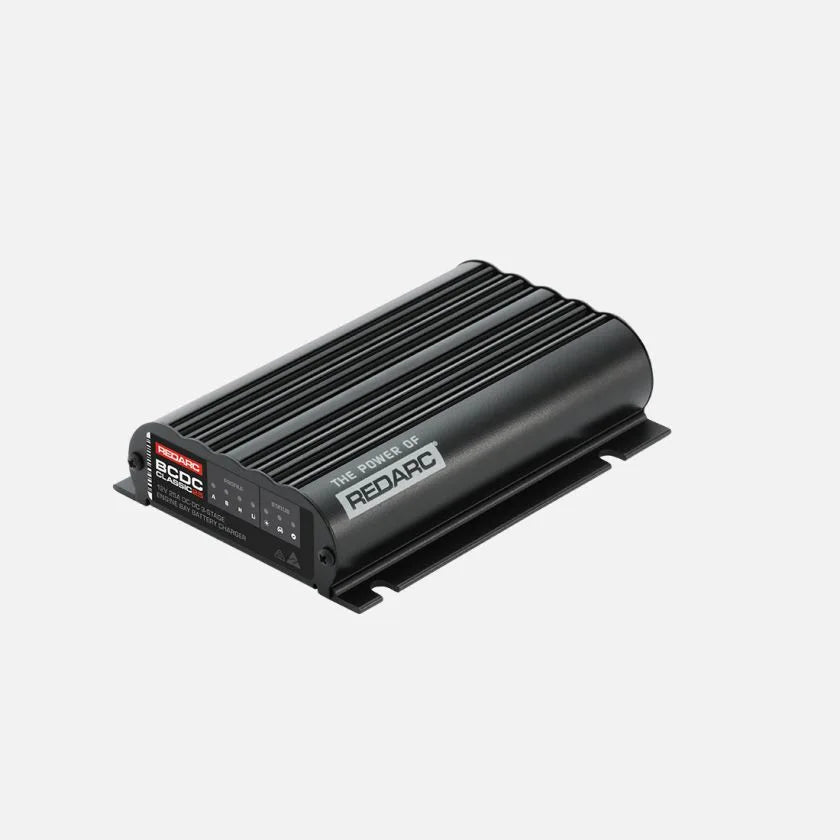

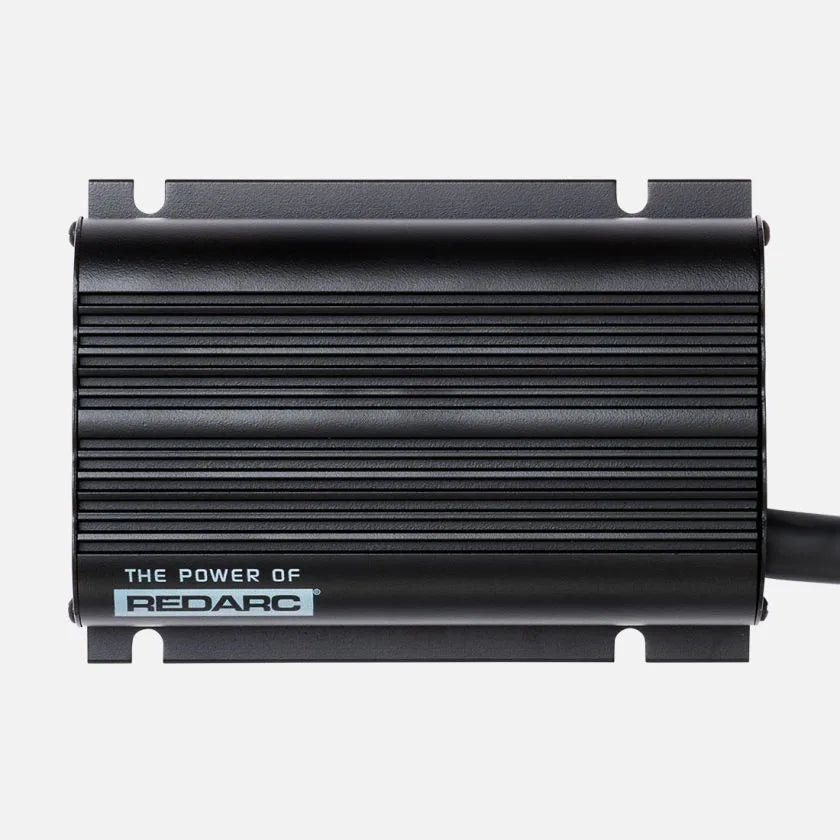

REDARC BCDC Classic 25A 12V DC Battery Charger
REDARC BCDC Classic 25A 12V DC Battery Charger
Out of stock
The REDARC BCDC1225D In-vehicle Dual Battery Charger is a 12 volt, 25A in-vehicle DC-DC battery charger designed to charge your secondary battery banks to 100% state of charge while on the move.
Couldn't load pickup availability
Product features
Product features
Separate DC and solar charging inputs
Maximises the performance and life of your auxiliary battery
Simultaneous DC and solar charging with Green Power Priority™
Suits 12V/24V standard and variable voltage/smart alternators
Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
Suitable for use on vehicles with conventional alternator charging systems
Specifications
Specifications
Warranty 2 Years
Brand REDARC
Battery Chemistry Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
Power Type - AC DC DC TO DC
Nominal Output Power 375W
Input Fuse Rating 40A (Not supplied) REDARC FK40 recommended
Solar Switch On Voltage 9V
Suitable For 12V Systems Yes
Suitable For 24V Systems Yes
Solar Input Voltage 9 - 32V
MPPT Solar Regulator Yes
Cabin/ Canopy Install Yes
No Load Current <100mA
Trailer Install Yes
Engine Bay Install Yes
Max. Charging Voltage 15.3V
Output Fuse Rating 40A (Not supplied) REDARC FK40 recommended
Operating Temperature -20°C to 80°C
Output Voltage 12V DC
Max. Rated Output Current 25A
Input Voltage 9 - 32V
Standby Current <8mA
Connector Type Bare wire
Weight 1 kg
width 120 mm
height 37 mm
depth | length 165 mm
