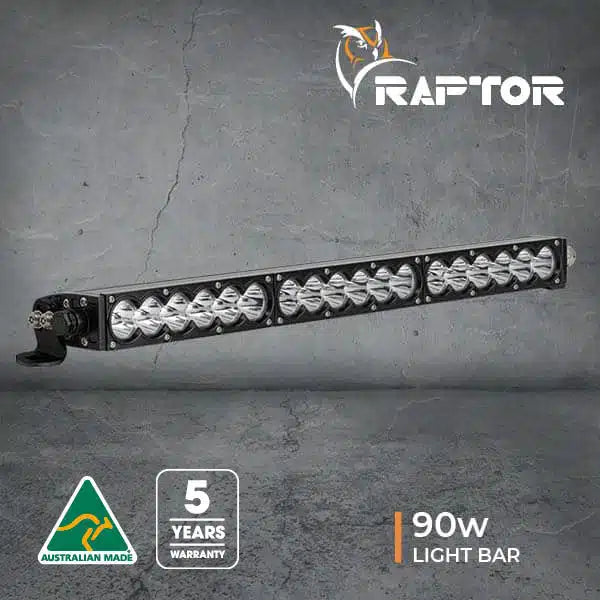

Ultra Vision Raptor 90 20.5" LED Light Bar
Ultra Vision Raptor 90 20.5" LED Light Bar
Out of stock

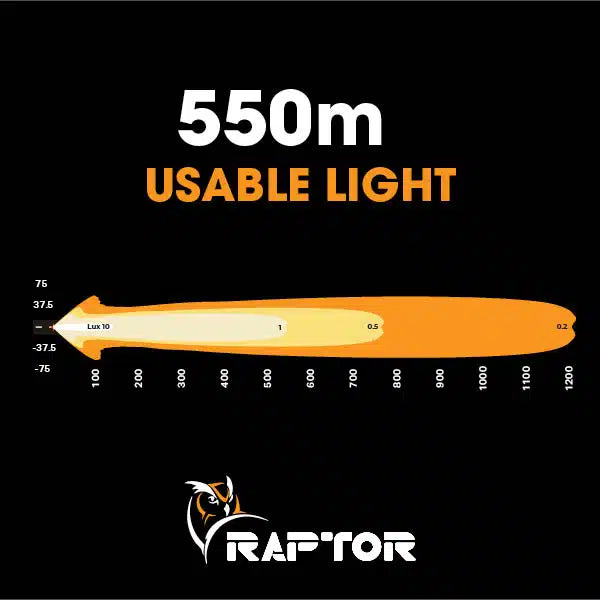

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.
Couldn't load pickup availability
Product features
Product features
Specifications
Specifications
Wattage 90 Watts
Light Source 18 x 5w LED's
Light Output – Raw 10,800 Lumens
Light Output – Effective 8,650 Lumens
Voltage 9-36V
Current Draw 6.7A @ 13.5V
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plugs 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 5700K
Lifespan 50,000 Hours

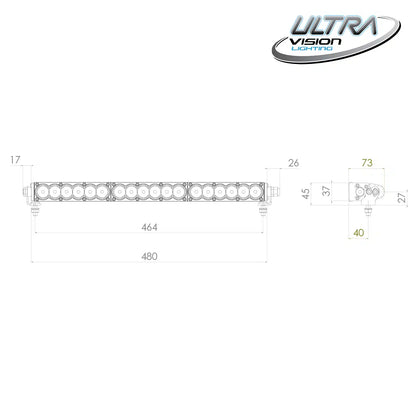

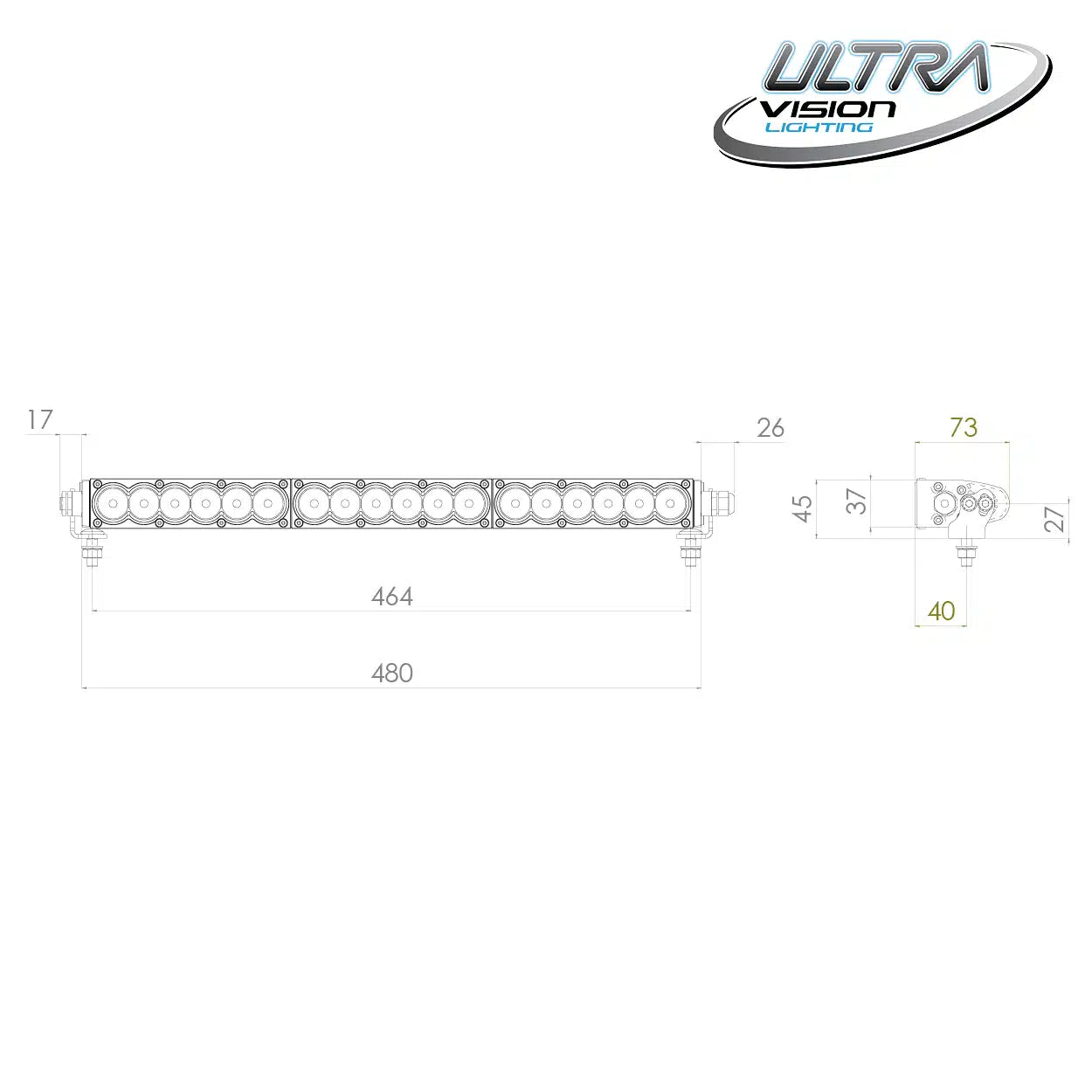

Dimensions 523 x 45 x 73mm
Net Weight 1.7kg
Mounting Suitable Side Mounts
Beams Type Combo or Spread
Warranty 5 Years
Harness Harness not included, purchased separately. Harness to suit: DV12H
