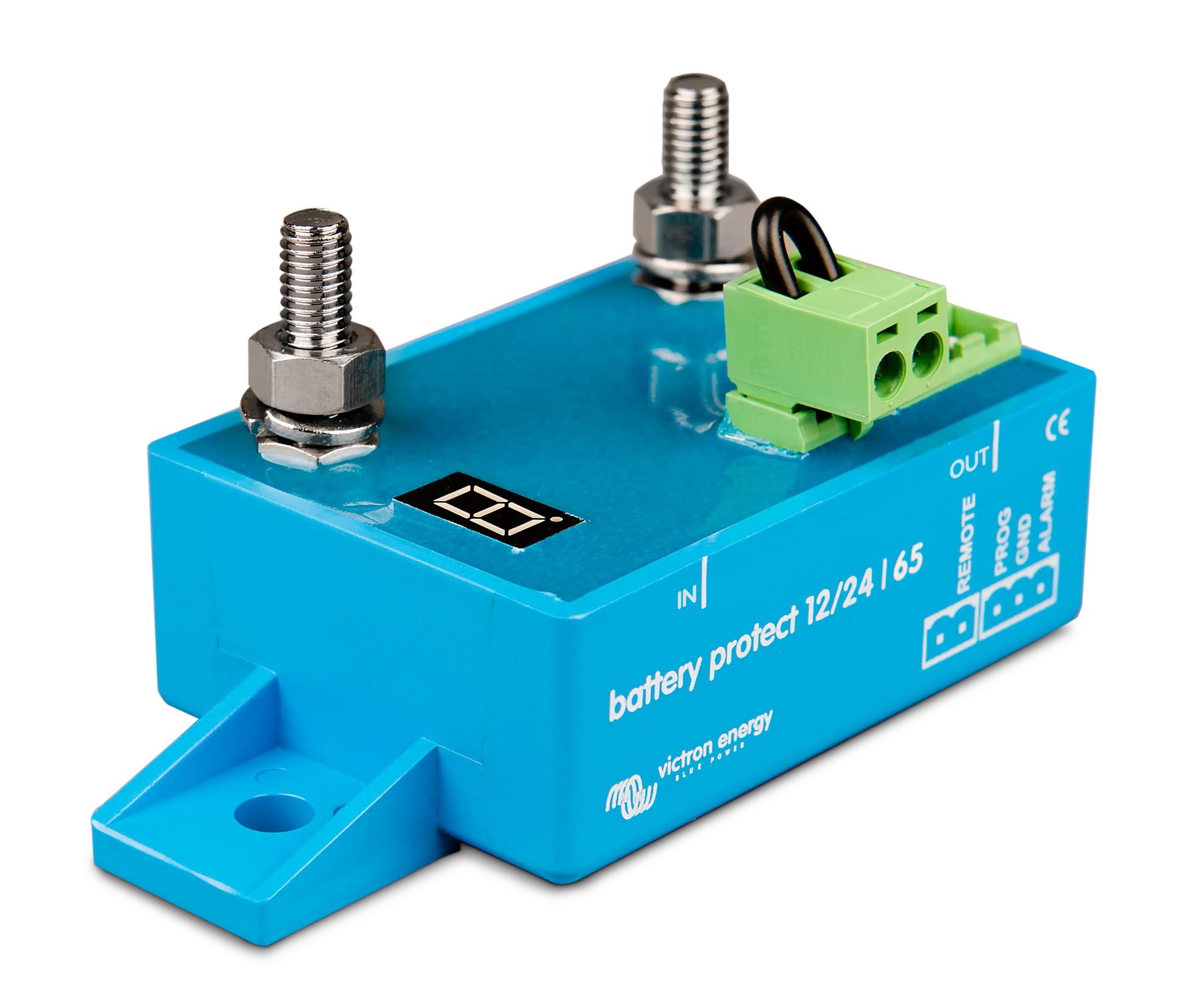

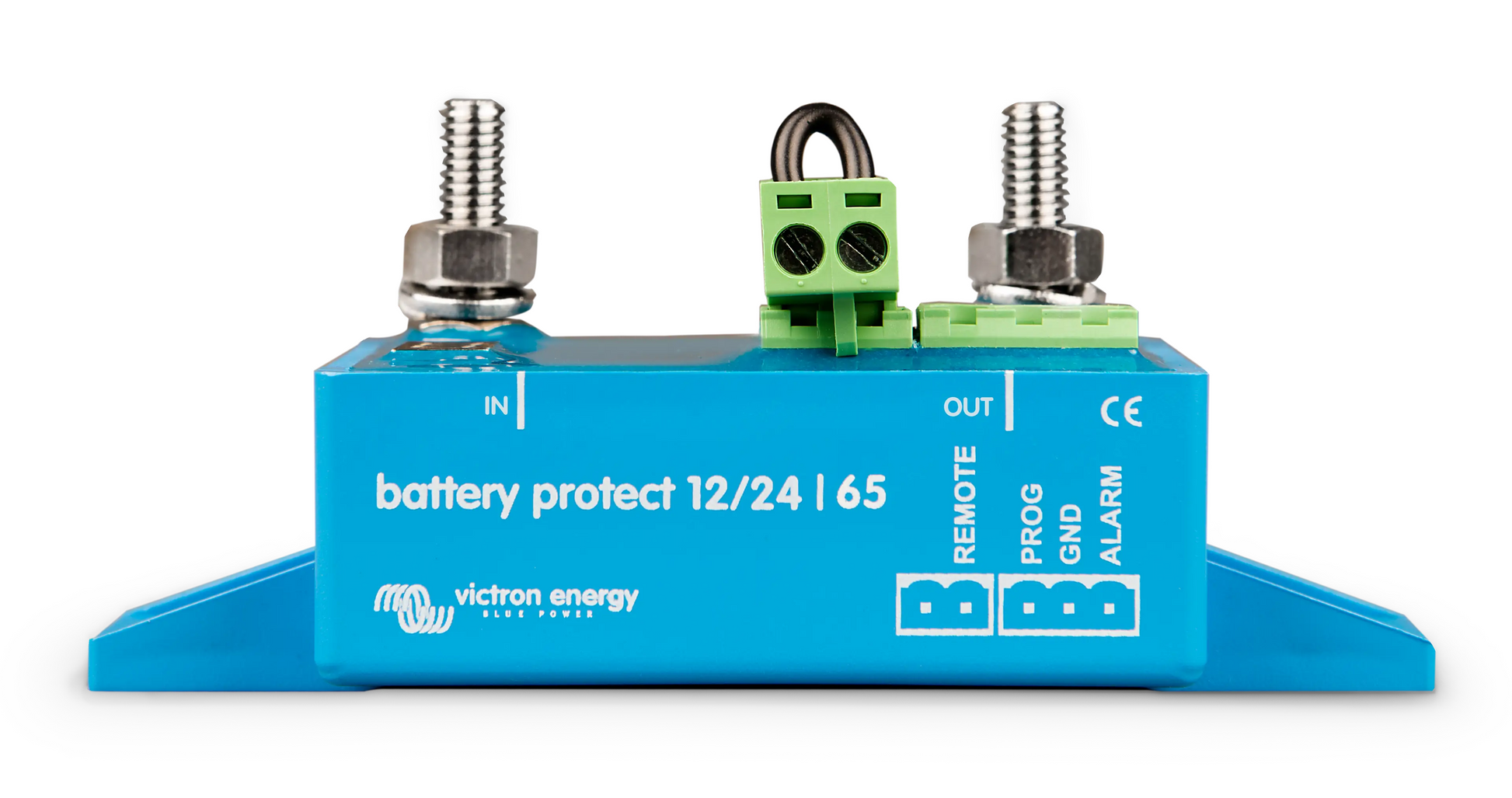

Victron Battery Protect 65A
Victron Battery Protect 65A
Out of stock
The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.
Couldn't load pickup availability
Product features
Product features
Protection of the battery against excessive discharge and can be used as a system on/off switch.
12/24V auto ranging. The BatteryProtect automatically detects system voltage one time only (can be re-triggered - see section Programming table).
A special setting for Lithium batteries. This feature allows external control from a BMS like the VE.Bus BMS or Lynx Smart BMS. If the load disconnect output of a BMS is connected to the pin labelled REMOTE and the signal becomes free-floating, the load is immediately disconnected.
Ultra-low current consumption of 1.5mA: This is important in case of Li-ion batteries, especially after low voltage shutdown.
Over voltage protection: To prevent damage to sensitive loads due to over voltage. The load is disconnected whenever the DC voltage exceeds 16.3V (for a 12V system), respectively 32.6V (for a 24V system).
Ignition proof: No relays but MOSFET switches, and therefore no sparks.
Delayed alarm output: The alarm output is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds. Starting the engine will therefore not activate the alarm.
Delayed load disconnect and delayed reconnect. Responding quickly within this delay, for example, by reducing the load or starting a generator or charger to charge the batteries, can prevent loads from being switched off.
Specifications
Specifications
Max. continuous load current 65A
Peak current 250A
Operating voltage range 6 - 35 V
Current consumption When on: 1.5mA When off or low voltage shutdown: 0.6mA
Alarm output delay 12 seconds
Max. load on alarm output 50mA - short circuit proof
Load disconnect delay 90 seconds (immidiate if triggered by a BMS)
Load reconnect delay 30 seconds
Default thresholds Disengage: 10.5 V or 21 V Engage: 12 V or 24 V
Operating temperature range Full load: -40 °C to +40 °C (up to 60% of nominal load at 50 °C)
Connection M6
Mounting Torque 5 Nm
Weight 0.2 kg 0.5 lbs
Dimensions (hxwxd) 40 x 48 x 106 mm
1.6 x 1.9 x 4.2 inch
