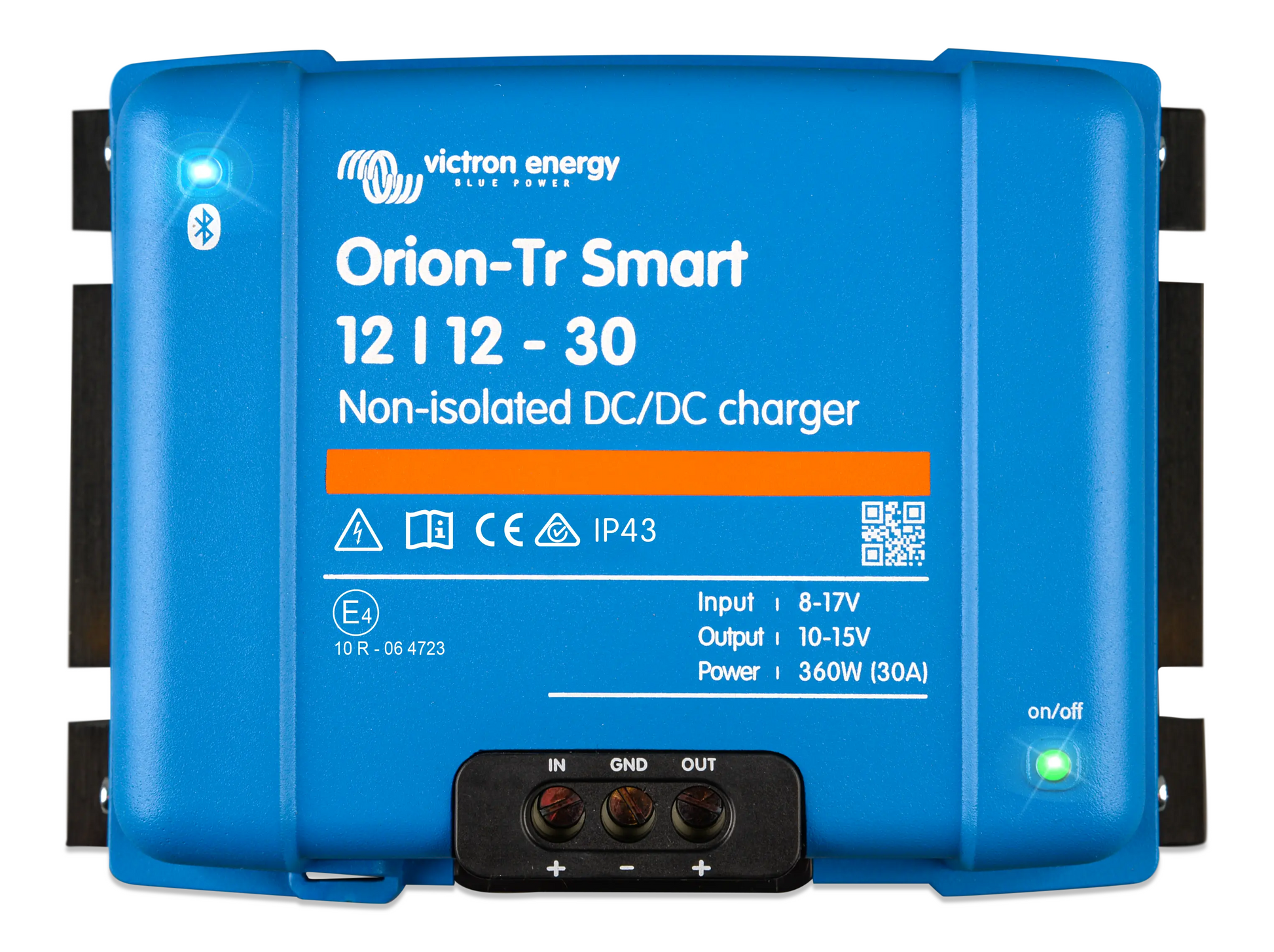

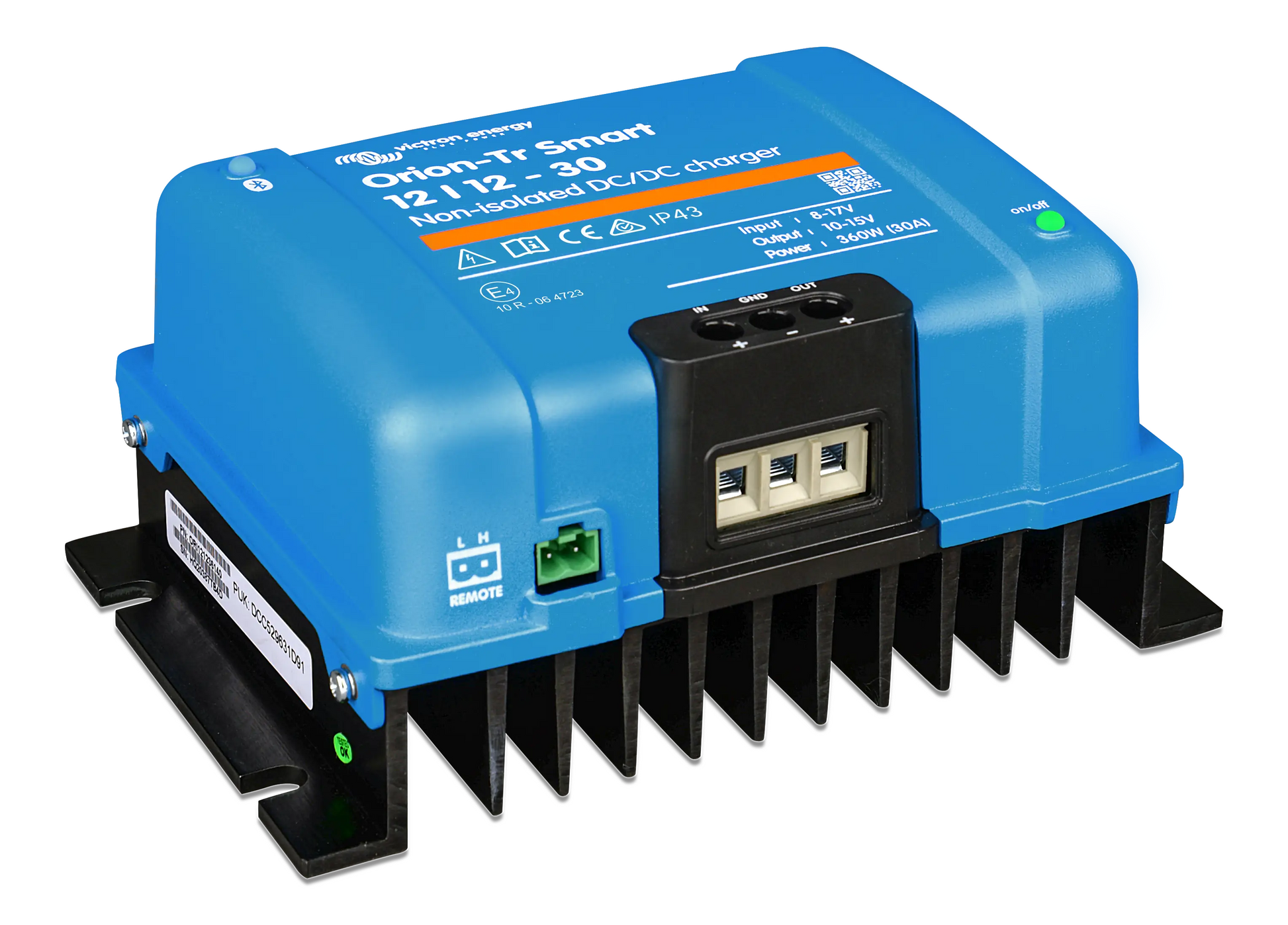

Victron Orion-Tr Smart 12/12 30A Non Isolated
Victron Orion-Tr Smart 12/12 30A Non Isolated
Out of stock
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
Couldn't load pickup availability
Product features
Product features
Specifications
Specifications
Input voltage range (1) 8-17 V
Under voltage shut down 7 V
Under voltage restart 7.5 V
Nominal output voltage 12.2 V
Output voltage adjust range 10-15 V
Output voltage tolerance +/- 20mV
Output noise 2 mV rms
Cont. output current at nominal output voltage and 40°C 30 A
Maximum output current (10 s) at nominal output voltage 40 A
Short circuit output current 60 A
Cont. output power at 25°C 430 W
Cont. output power at 40°C 360 W
Efficiency 87%
No load input current < 80 mA
Standby current Less than 1 mA
Galvanic isolation 200 V dc between input, output and case
Operating temperature range -20 to +55° C (derate 3% per °C above 40° C)
Humidity Max. 95% non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² AWG6
Weight 12 V input and/or 12 V output models: 1.8 kg (4 lb)
Other models: 1.6 kg (3.5 lb)
Dimensions hxwxd 12 V input and/or 12 V output models: 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
Other models: 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
Standards: Safety EN 60950
Emission EN 61000-6-3, EN 55014-1
Immunity EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive ECE R10-5
