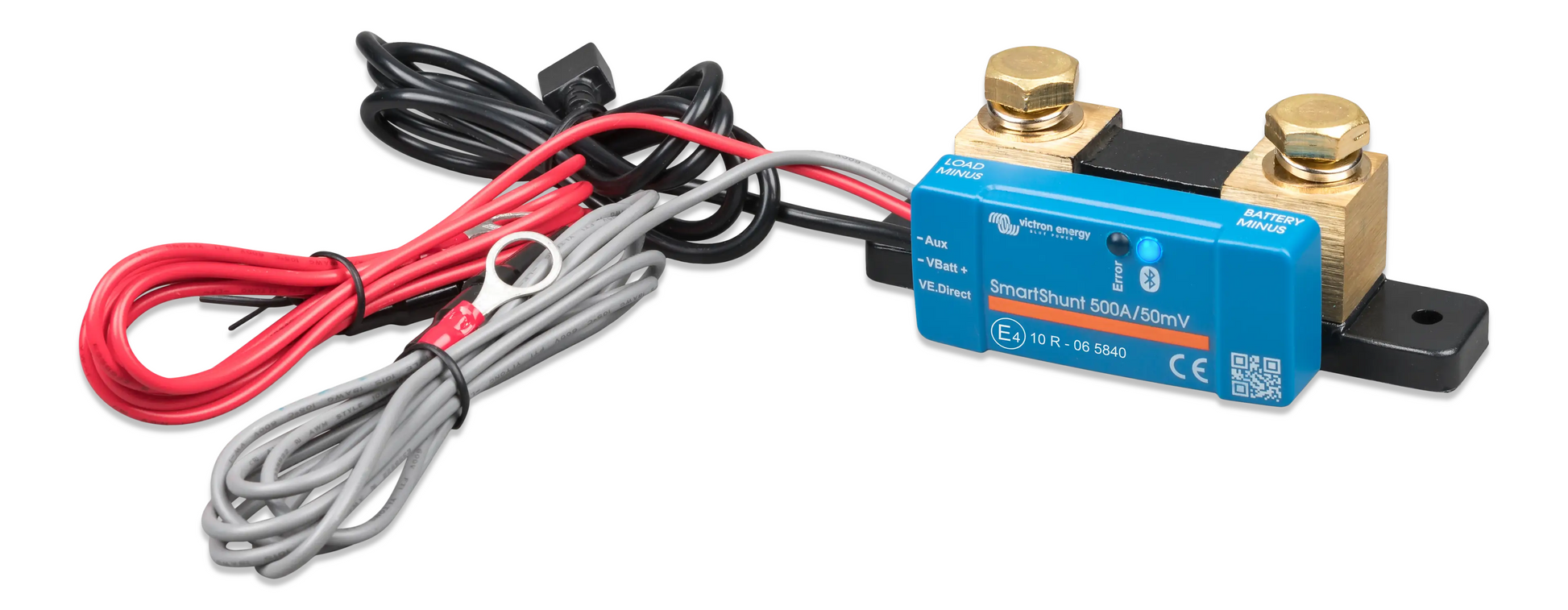

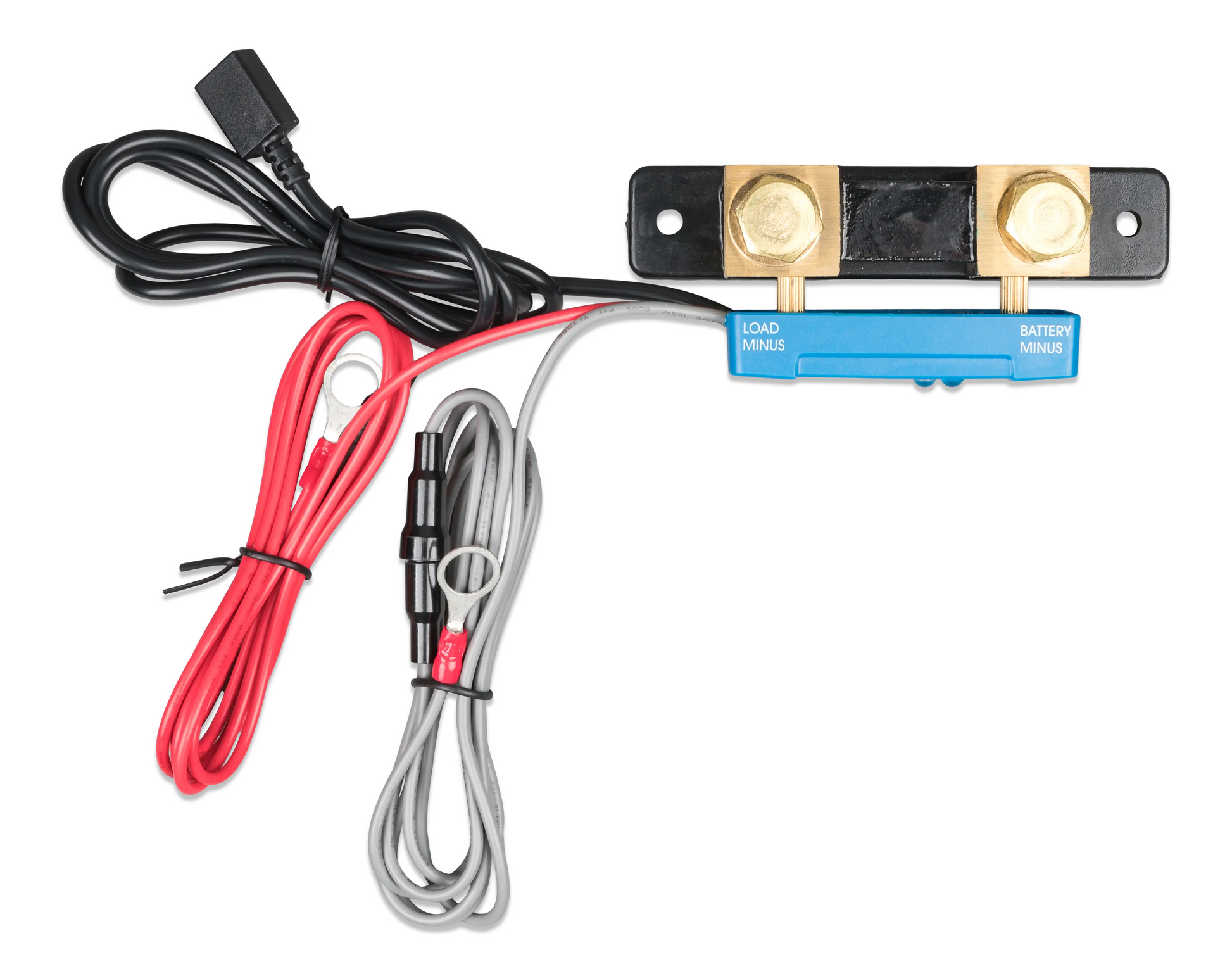

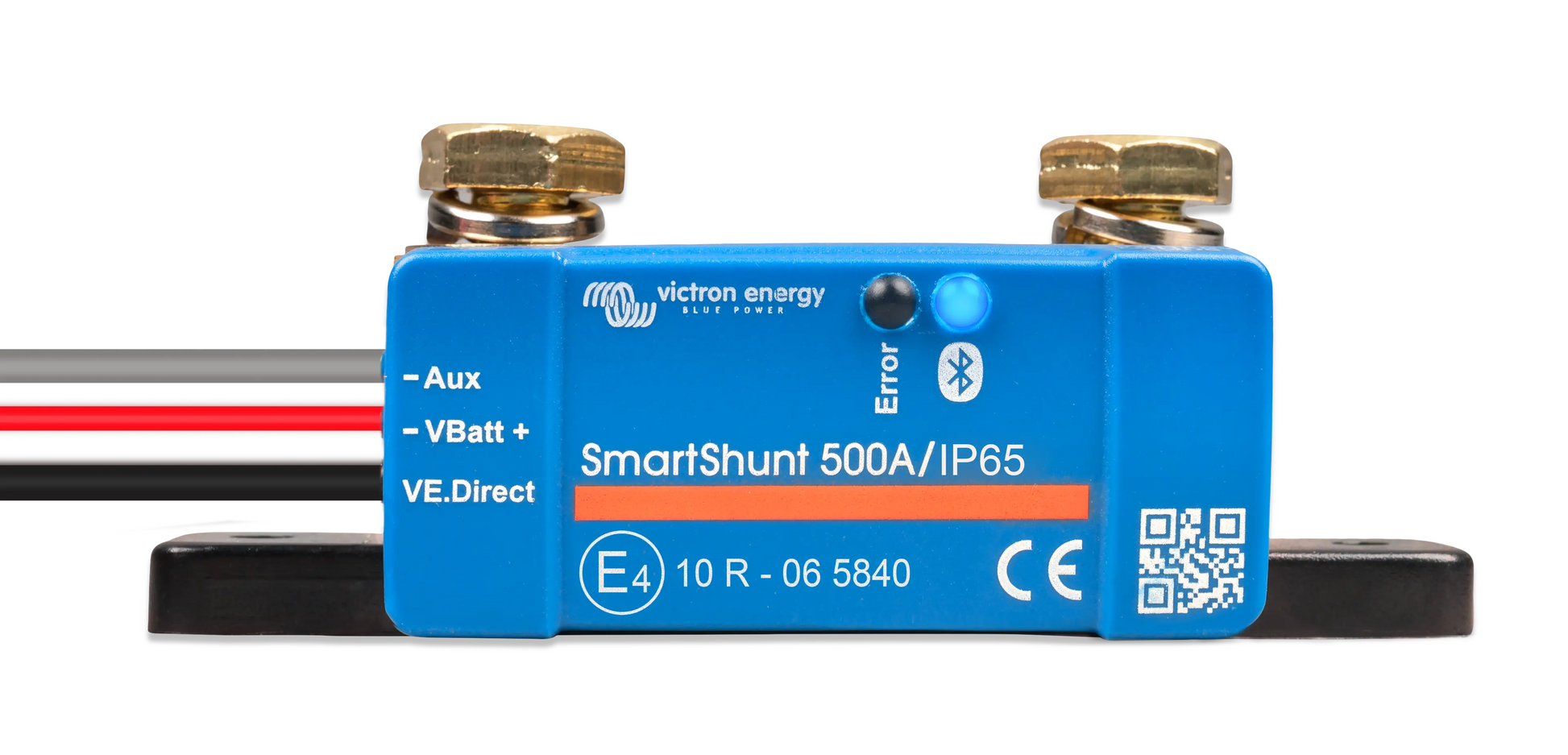

Victron Smart Shunt 500A
Victron Smart Shunt 500A
Out of stock
The SmartShunt is an intelligent battery monitor providing detailed usage insights via the VictronConnect app. Compatible with any battery type, it's available in IP-rated versions and easily (retro)fitted without cable clutter.By measuring voltage and current, it calculates battery state of charge and remaining runtime. Alternatively, it works as a DC meter, monitoring inverter input, or loads like fridges and pumps. Data appears instantly in the VictronConnect app without Bluetooth pairing delays.VE.Smart Networking supports wireless data sharing with other Victron devices to improve charging efficiency. Connecting to a communication centre allows remote monitoring and control via our VRM portal.
Couldn't load pickup availability
Product features
Product features
99.6% accuracy
VictronConnect App
In-app battery and DC flow insights
Remote Management optional
Wireless data sharing
SafetyShield+
Specifications
Specifications
SmartShunt IP65 300 A / 500 A / 1000 A / 2000 A
Supply voltage range 6.5 - 70 VDC
Current draw < 1 mA
Input voltage range, auxiliary battery 6.5 - 70 VDC
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 +50 °C (-40 – 120 °F)
Measures voltage of second battery, or
temperature, or midpoint Yes
Temperature measurement range -20 +50 °C
VE.Direct communication port Yes
RESOLUTION & ACCURACY
Current ± 0.01 A
Voltage ± 0.01 V
Amp hours ± 0.1 Ah
State of charge (0 – 100 %) ± 0.1 %
Time to go ± 1 min
Temperature (if optional temperature
sensor connected)
± 1 °C/°F
(0 – 50 °C or 30 – 120 °F)
Accuracy of current measurement ± 0.4 %
Offset Less than 10 / 10 / 20 / 40 mA
Accuracy of voltage measurement ± 0.3 %
INSTALLATION & DIMENSIONS
Dimensions (h x w x d)
300A: 44 x 120 x 38 mm
500A: 46 x 120 x 54 mm
1000A: 68 x 168 x 75 mm
2000A: 68 x 168 x 100 mm
Shunt connection bolts 300 A: M8
500 A, 1000 A, 2000 A: M10 (0.3937 inch)
Protection category IP65
STANDARDS
Safety EN 60335-1
Emission / Immunity EN-IEC 61000-6-1 EN-IEC 61000-6-2
EN-IEC 61000-6-3
Automotive EN 50498
