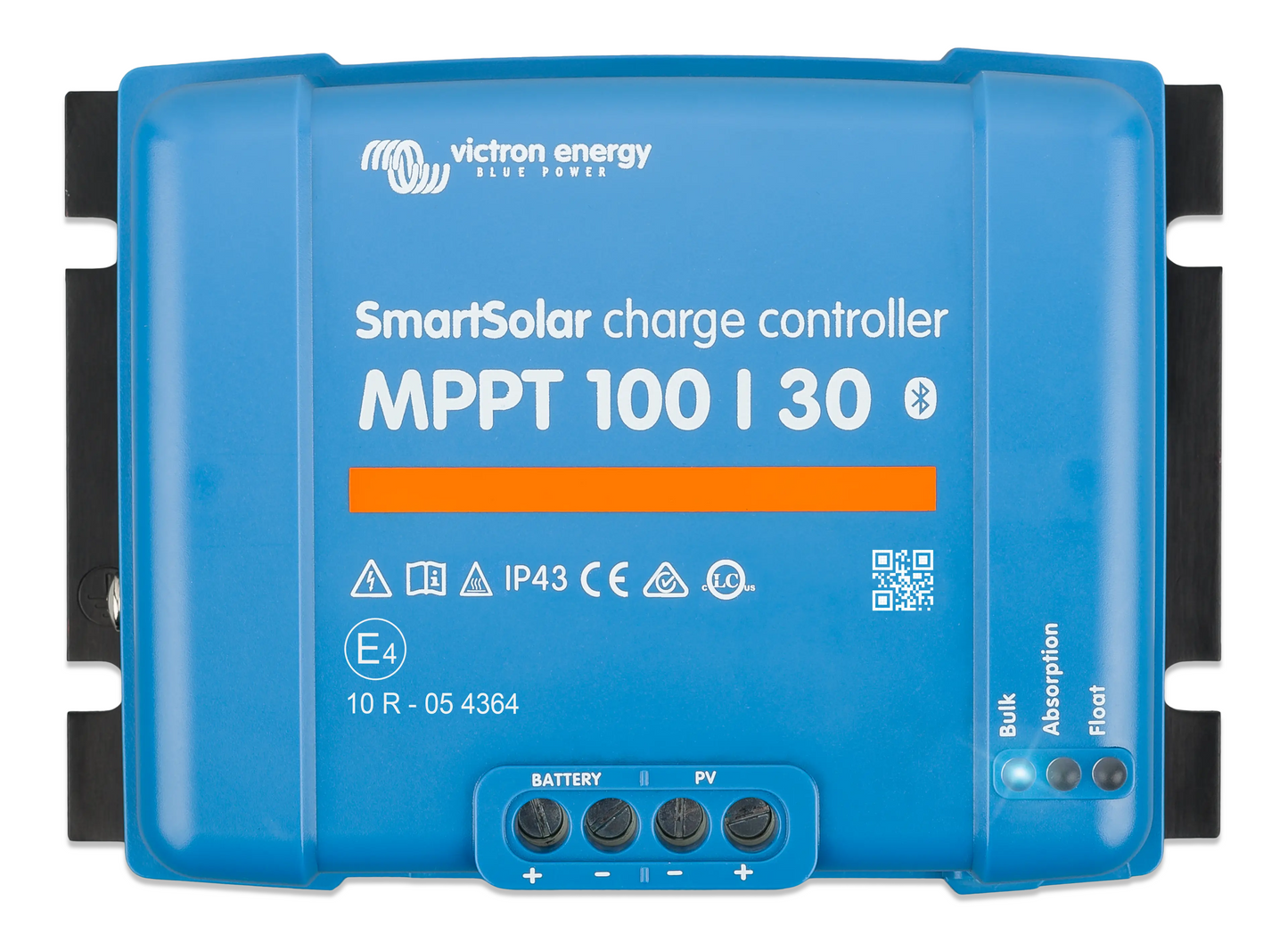

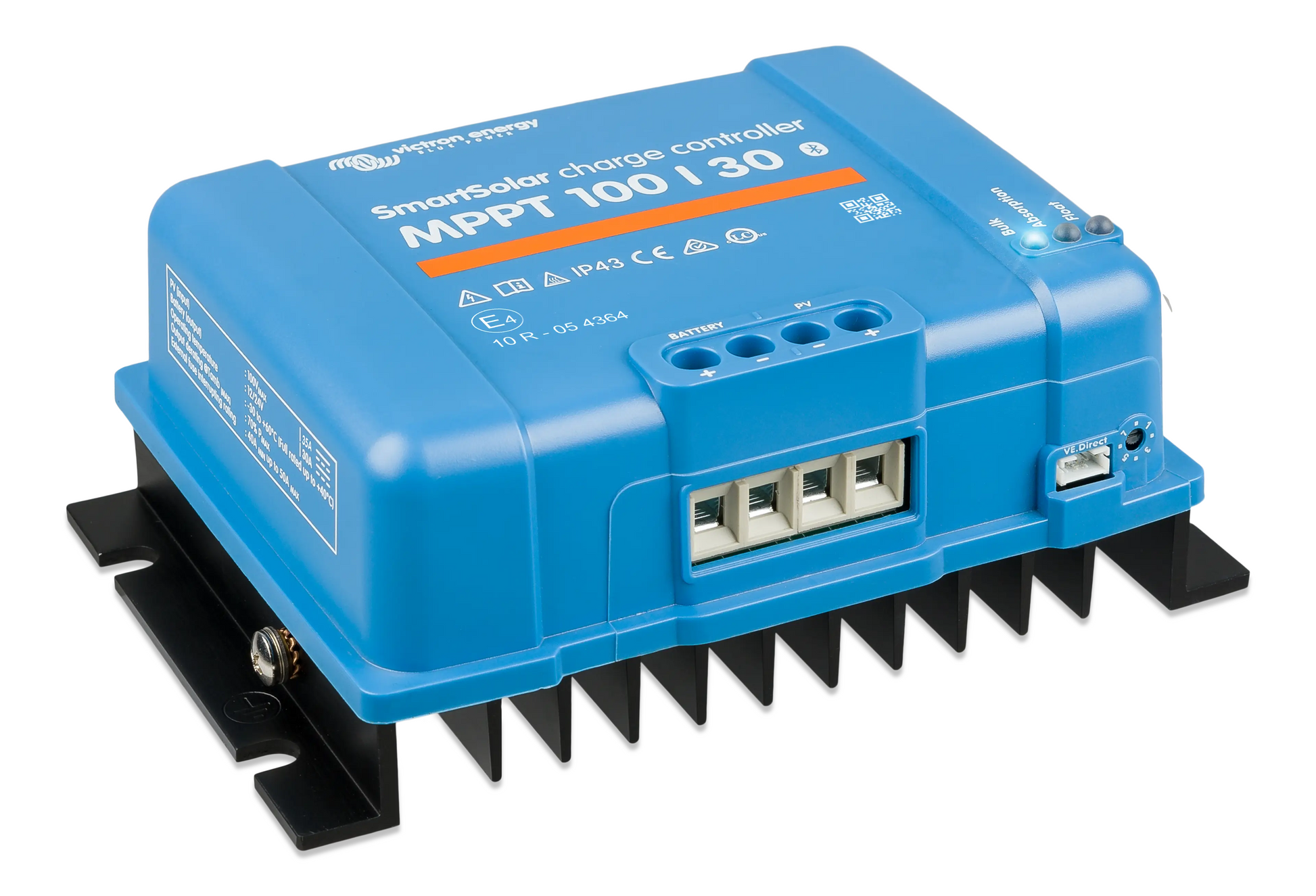

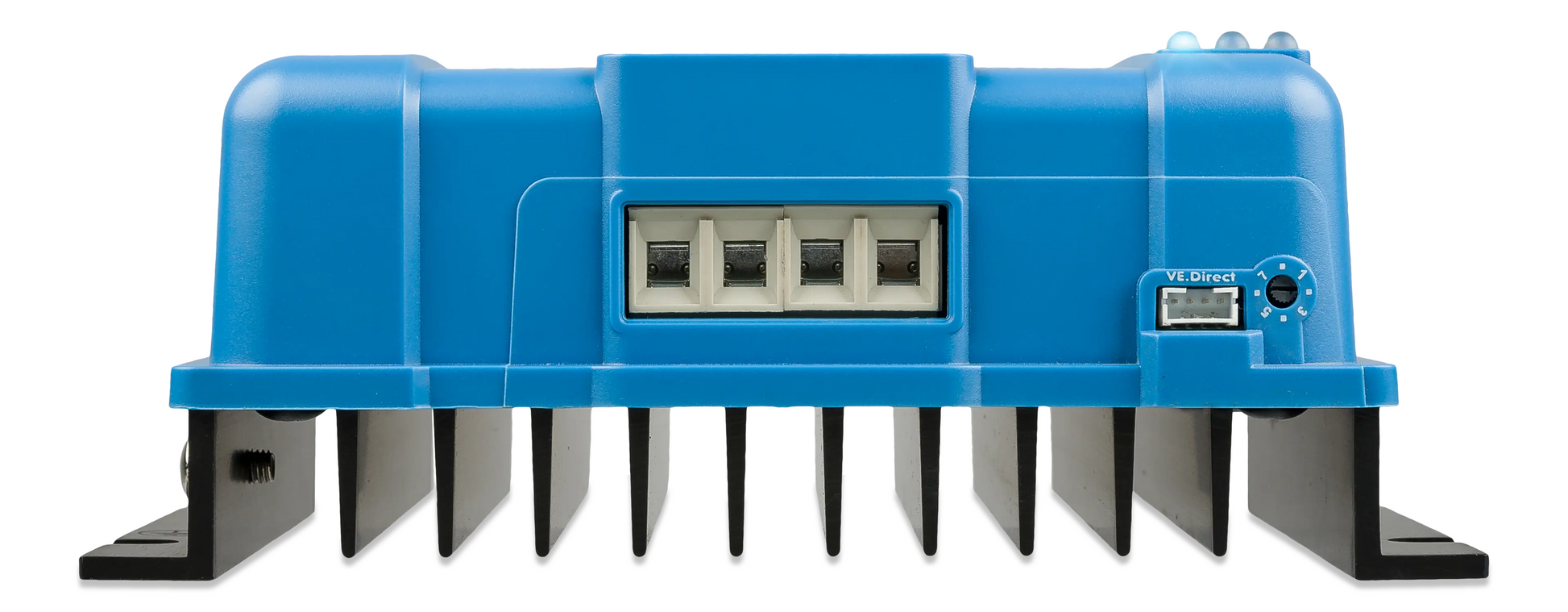

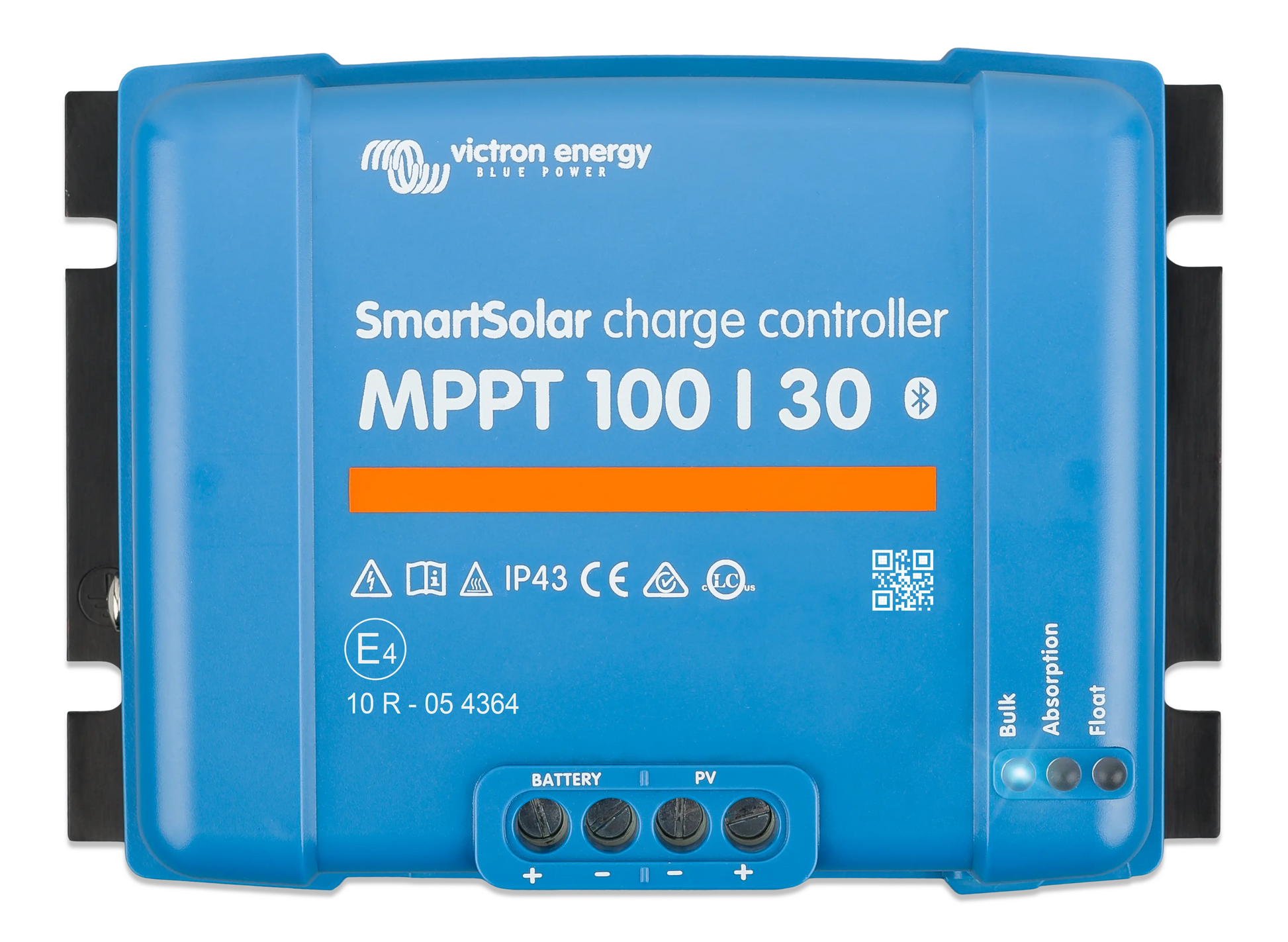

Victron SmartSolar MPPT 100/30 Solar Controller
Victron SmartSolar MPPT 100/30 Solar Controller
Out of stock
The SmartSolar MPPT is packed with advanced technology to get the most out of your solar panels whilst protecting your batteries. It operates at 98% efficiency with natural cooling and is engineered to withstand the toughest conditions.
Its lightning-fast maximum power point tracking converts all available sunlight into useful energy. Its charge algorithms enhance power output and extend battery life by intelligently managing charging cycles. Built-in SafetyShield+ features such as over-temperature, short-circuit, and reverse polarity protection safeguard your batteries from potential issues.
Couldn't load pickup availability
Product features
Product features
Lightning-fast maximum power point tracking
Remote Management optional
Intelligent charge algorithm
VictronConnect App
Wireless charging synchronisation
SafetyShield+
Specifications
Specifications
Battery voltage (auto select) 12V or 24V
Rated charge current 30A
Nominal PV power, 12V 1a,b 440W
Nominal PV power, 24V 1a,b 880W
Maximum PV open circuit voltage 100V
Max. PV short circuit current 2 35A
Maximum efficiency 98%
Self-consumption 12V: 30mA / 24V: 20mA
Charge algorithm Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Charge voltage 'absorption' 14.4V / 28.8V (adjustable)
Charge voltage 'float' 13.8V / 27.6V (adjustable)
Charge voltage 'equalization' 3 16.2V / 28.8V (adjustable)
Temperature compensation 12V: -16mV/°C / 24V: -32mV/°C
Protection Output short circuit, over temperature
Operating temperature -30°C to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Maximum altitude 5000m (full rated output up to 2000m)
Environmental condition Indoor type 1, unconditioned
Pollution degree PD3
Data communication VE.Direct port 4
ENCLOSURE
Colour Blue (RAL 5012)
Power terminals 16 mm² / AWG6
Protection category IP43 (electronic components), IP22 (connection area)
Weight 1.3 kg
Dimensions h x w x d 130 x 186 x 70 mm
STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
