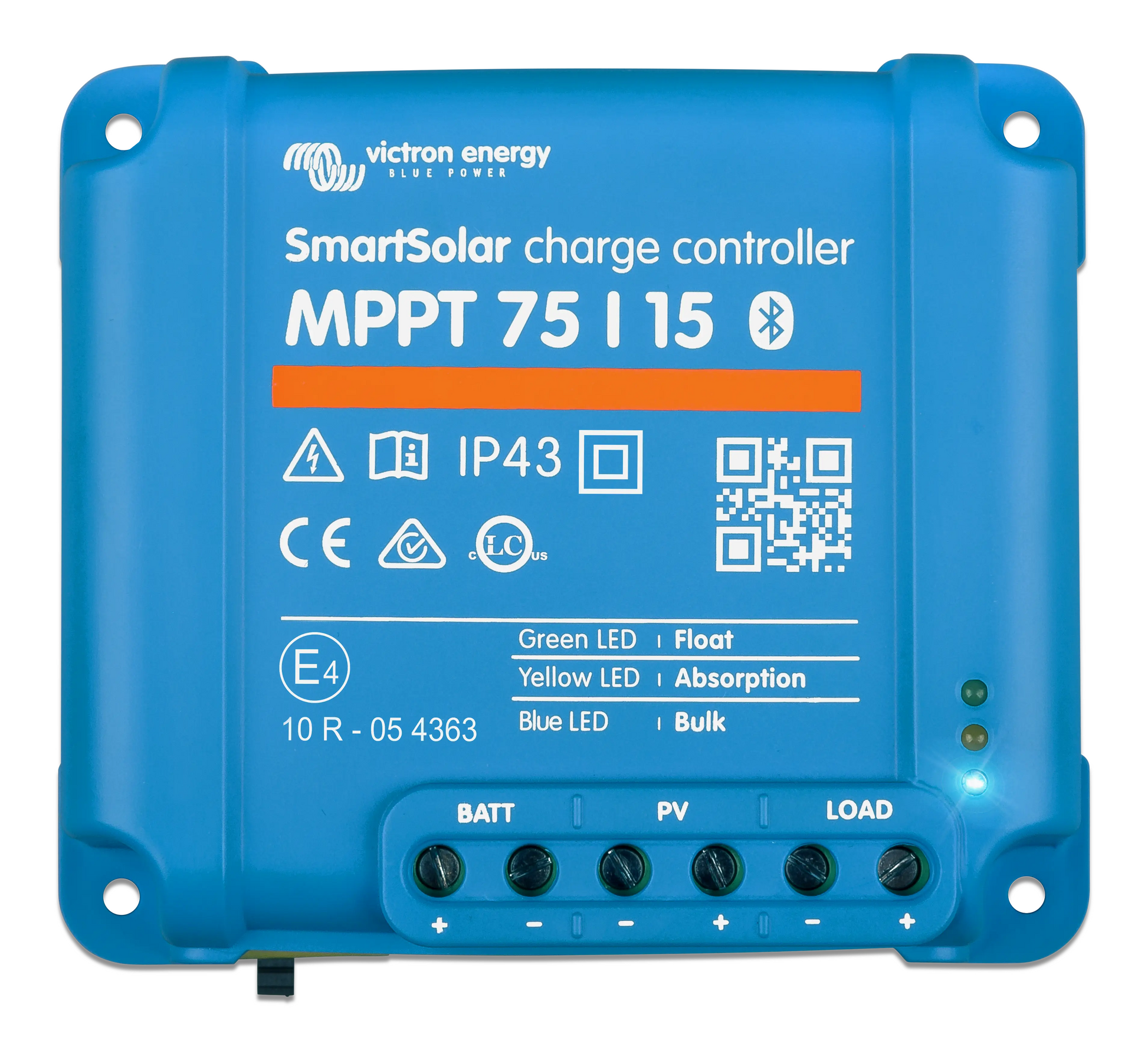

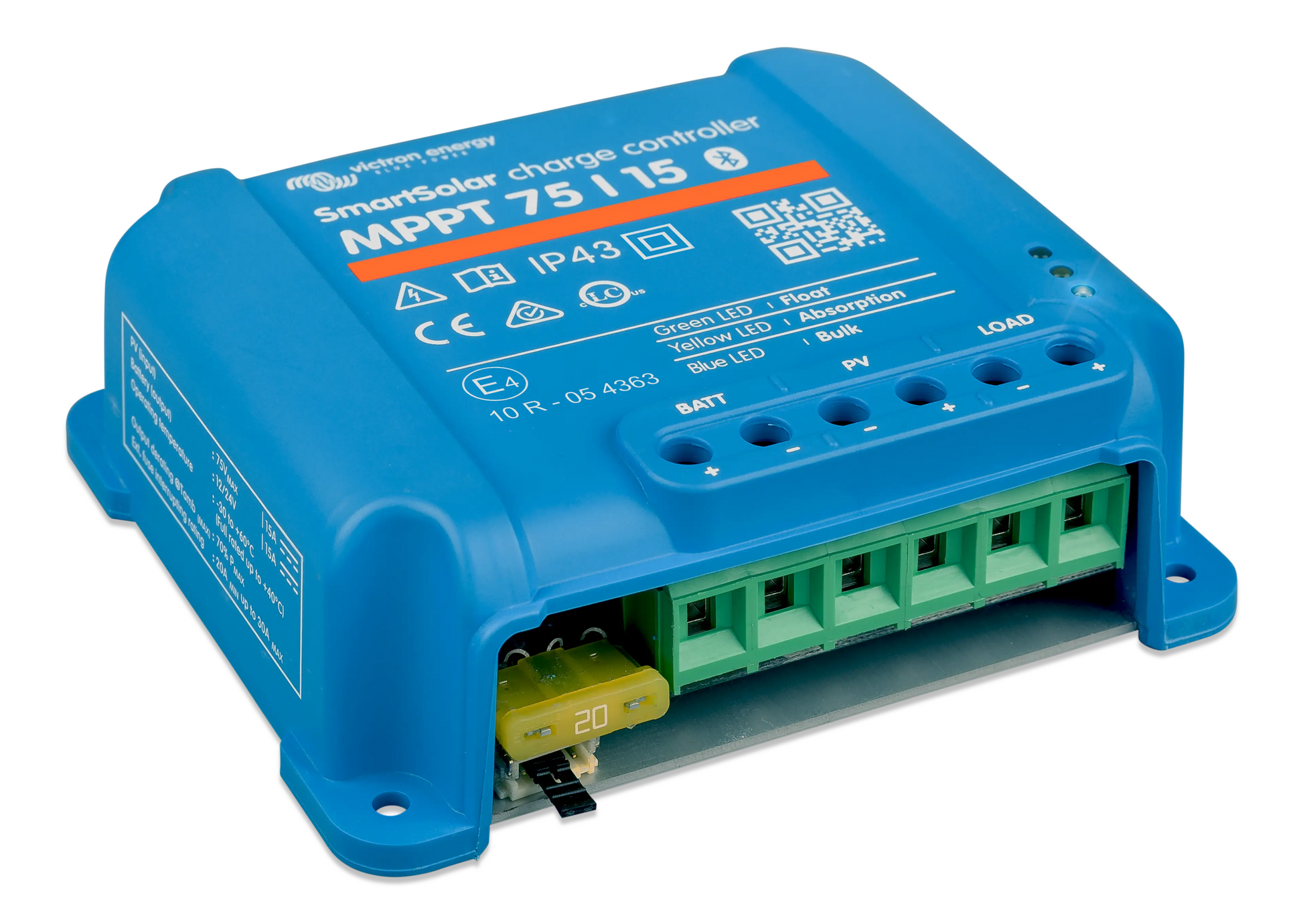

Victron SmartSolar MPPT 75/15 Solar Controller
Victron SmartSolar MPPT 75/15 Solar Controller
Out of stock
The SmartSolar MPPT is packed with advanced technology to get the most out of your solar panels whilst protecting your batteries. It operates at 98% efficiency with natural cooling and is engineered to withstand the toughest conditions.
Its lightning-fast maximum power point tracking converts all available sunlight into useful energy. Its charge algorithms enhance power output and extend battery life by intelligently managing charging cycles. Built-in SafetyShield+ features such as over-temperature, short-circuit, and reverse polarity protection safeguard your batteries from potential issues.
Couldn't load pickup availability
Product features
Product features
Lightning-fast maximum power point tracking
Remote Management optional
Intelligent charge algorithm
VictronConnect App
Wireless charging synchronisation
SafetyShield+
Specifications
Specifications
MPPT 75/10
Battery voltage (auto select) 12V or 24V
Maximum battery current 10A
Nominal PV power, 12V 1a,b 145W
Nominal PV power, 24V 1a,b 290W
Max. PV short circuit current 2 10A
Automatic load disconnect Yes
Maximum PV open circuit voltage 75V
Peak efficiency 98%
Self consumption 12V: 20mA / 24V: 10mA
Charge voltage 'absorption' 14.4V / 28.8V / 57.6V (adjustable)
Charge voltage 'float' 13.8V / 27.6V / 55.2V (adjustable)
Charge voltage 'equalization' 3 16.2V / 32.4V / 64.8V (adjustable)
Charge algorithm Multi-stage adaptive or user defined algorithm
Temperature compensation 12V: -16mV/°C / 24V: -32mV/°C / 48V: -64 mV/°C
Continuous load current 15A
Low voltage load disconnect 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or BatteryLife algorithm
Low voltage load reconnect 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or BatteryLife algorithm
Protection PV reverse polarity, output short circuit, over temperature
Operating temperature -30°C to +60°C (full rated output up to 40°C)
Humidity 100%, non-condensing
Maximum altitude 5000m (full rated output up to 2000m)
Environmental condition Indoor type 1, unconditioned
Pollution degree PD3
Data communication VE.Direct port 4
ENCLOSURE
Colour Blue (RAL 5012)

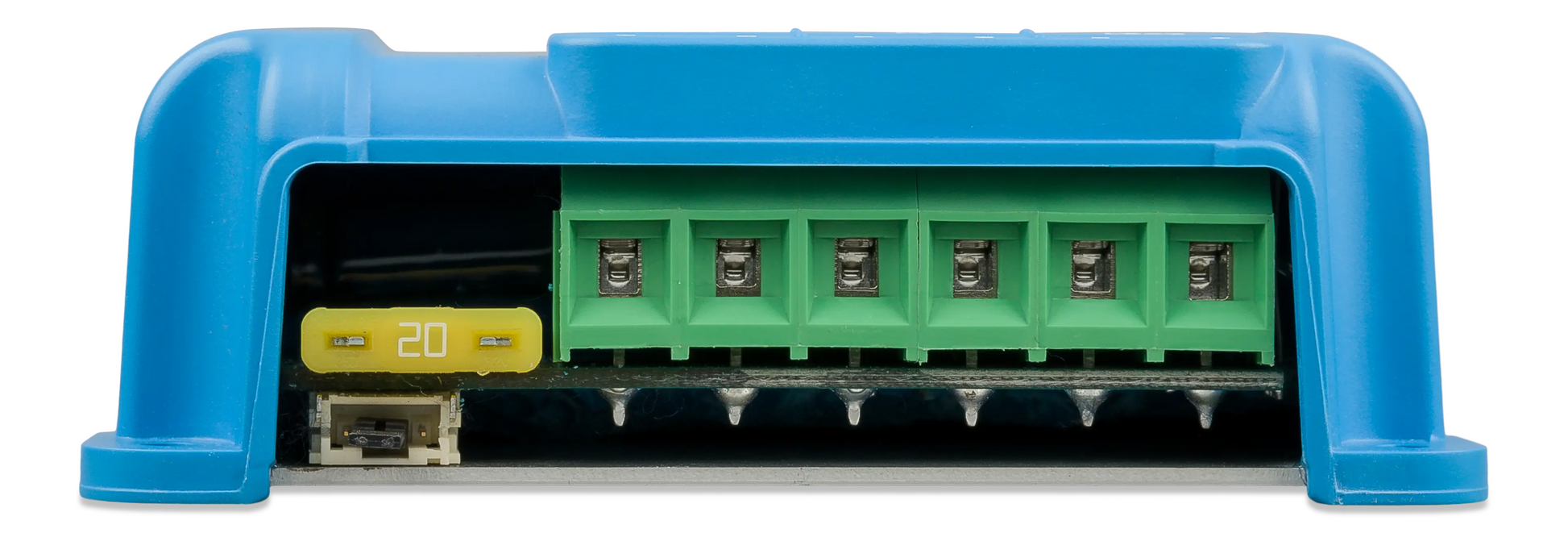

Power terminals 6mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.5kg
Dimensions (h x w x d) 100 x 113 x 40mm
STANDARDS
Safety EN/IEC 62109-1 / UL 1741 / CSA C22.2 NO.107.1-16
